Frequently Asked Questions about LiveWall

LiveWall offers advantages over other green wall systems.

Benefits

Why place living walls indoors?2018-08-31T16:20:55+00:00

Living walls contribute to improved indoor air quality.  They naturally provide oxygen, humidity, and reduced particulates and volatile organic compounds (VOCs).   When people are surrounded by plants, they are happier, healthier, as well as more creative, productive and focused.  They experience less stress and lower cortisol levels.

Learn More About These Benefits
Do green walls reduce storm water runoff?2018-08-31T16:22:30+00:00

The typical green wall has very little impact upon storm water runoff. This is because the system footprint is vertical and is quite small in terms of horizontal surface area. In addition, the building overhang often blocks rain.

If storm water management is a high priority, the rain should first be captured from the roof, stored in a cistern, then filtered and used to irrigate your LiveWall vertical garden.

How do green walls reduce noise?2018-04-23T15:13:25+00:00

Plants, soil, trapped air, and moisture in the soil are great acoustic insulators. Studies have shown that green walls can reduce ambient noise by up to 40 decibels, an important benefit to those who work or live close to noisy streets, highways and airports. Because the decibel scale is logarithmic, every 10-decibel reduction equals a tenfold decrease in intensity.

If you live on a busy street, ambient noise levels may average 75 decibels. The design for a quiet office may target 60 decibels, a quiet urban neighborhood may average 40 decibels at night and a quiet library may seek to operate below 40 decibels If you are an architect, landscape architect or contractor, it is easy to see how much additional peace and tranquility you can bring to your client by including a vertical garden in your building plan.

Hardware Gastropub green wall
What are the financial benefits of living walls?2018-04-23T15:12:42+00:00

Vertical gardens will save the property owner on air conditioning and heating costs, and will save on the grocery bill when planted with herbs and vegetables. There are many additional financial benefits associated with Biophilia in the workplace, retail settings, healing centers, and educational environments. To learn more, read about

The LiveWall System is delivered with mature plants in vertical gardens that are rich with the proper nutrients and irrigated by a metered watering system. As a result, our sustainable system demands less maintenance cost and prolonged plant longevity.

Learn More About These Benefits
What are the reasons to use LiveWall over other living wall systems?2018-04-23T15:11:55+00:00

The LiveWall System is different in design and use from other planted living wall products. For example, when you involve us in your design process and adopt the LiveWall System, you can rely on your living walls to be successful each and every time. LiveWall brings other important benefits, as well, such as excellent aesthetic presentation, instant functional and environmental benefits, substantially lower maintenance, elimination of soil erosion, standardized installation by expert installers, expertly engineered soil and plant selections, durable lasting components, and the pride in another sustainable eco-friendly project.

Simple, effective, attractive, instant, and most of all, great at growing healthy plants, LiveWall represents the best design and the best value in green, living wall systems.

What’s so special about the LiveWall® System?2018-04-23T15:24:35+00:00

First and foremost, LiveWall is designed by career horticultural professionals to grow healthy plants. From top to bottom, LiveWall’s vertical garden planters create a natural growing environment. We employ only our TopSide® technology, whereby the soil is oriented horizontally, unlike some competitors’ products, the plants grow upward from the top of the soil and the roots grow downward, as they do in nature. Likewise, with our unique RainRail™ mounting rail/irrigation conduits, the LiveWall System waters your plants naturally, like rain, but in evenly metered amounts along every tier of your living wall to sustain nutrient levels and plant health.

A living wall or vertical garden from LiveWall is unique in its simplicity, easy installation and sustainability. Our WallTer® wall-planters are high-impact, UV resistant moldings and the unique insert make pre-growing and planting simple. The LiveWall plants are typically pre-grown for instant maturity, instant benefits, predictable maintenance and low life-cycle costs.

Finally, a living wall from LiveWall is absolutely beautiful, and is attractive even when the plants are dormant. LiveWall can be used in both interior and exterior applications. It is effective for commercial, industrial, educational, governmental and residential projects. Although beautiful and functional in suburban and rural installations, LiveWall is particularly suited for the urban dwelling environment and is scalable. Our vertical gardens work beautifully in the most intimate urban applications as well as large scale, multi-story commercial projects and, in either case, can be installed with great efficiency.

Design flexibility is enormous and ranges from the use of annual plants for colorful patterns and waves of flowers to long-lived succulents, perennials, herbs, and vegetables. To meet your requirements, LiveWall modules can arrive at the job site fully vegetated in WallTer Inserts. Maintenance is easy and replacement of the plants is quick and economical.

How much does a LiveWall cost?

Cost

How often do green wall plants require replacement?2018-08-31T15:45:08+00:00

The need to replant during spring with vary with the severity of winter, diligence to proper care, and plant material.

Annuals, Vegetables, & Herbs

These plants require replacement at the beginning of every growing season.  There are two ways of doing this:

  1. Drop off your empty planter inserts at a local nursery to have them grow the plants in their greenhouses.  If they begin 6-8 weeks prior to your last frost date, you can begin harvesting right away once you plant them.
  2. Plant the liners yourself using 2 or 3 inch starter plants from your local garden center.

In any event, it is important to thoroughly wash out the planter inserts and start with fresh potting soil.

Soil Type

Organically rich potting soil, available at every garden center.

Perennials & Tropicals

By definition, perennials, including tropical perennials, have the potential to live forever.  But, when grown in a container such as the living wall planter insert, they will eventually become root-bound, and at some point will need to be replaced, or divided and replanted.  How long they will go with out the need for division is a factor of the particular plant’s habit, its root characteristics, and climate.  Many perennials are expected to last up to three years before becoming root-bound in the LiveWall system.*

How do you know when it is time to replant and divide a perennial?  You know it is time when the plant has become so root-bound that the growth and flowering become stunted.  When this occurs, the plants can be removed, divided and replanted.  Or, they can be composted and replaced with new plants.  Replacements should be done during spring or early summer so that the plants become well established prior to winter.

Soil Type

Potting soil containing pine bark, as it decomposes very slowly.

Sedums & Succulents

Follow LiveWall's succulent plant design guide recommendations for selection and pairing.

Because most Sedums and succulents have very fine root systems, they have the potential to survive for many years without becoming root bound.  Some could be sustained for over a decade depending on the species and care.  As such, they need to be potted in a soil that will hold its structure for many years.

Soil Type

“Alpine” soil-type that is gritty and highly inorganic (similar to blends used for green roofs).

*Consider a vinyl cover to reduce winter perennial plant losses.

Managing moisture of perennial plants during winter can be challenging.  LiveWall supplies grommeted, vinyl winter covers to aid in the overwintering of “perennial” plants in cold winter climates.

Why is this needed?

In cold winters, especially those with sunny windy conditions, the plants can literally be “freeze-dried”. By covering with a vinyl winter cover, this effect is greatly lessoned. Winter covers act to moderate temperature highs and lows, block the wind, and hold in moisture.

Winter Cover Use Instructions
What do they look like?

They are printed with an attractive mid-green, translucent Boston ivy graphic.

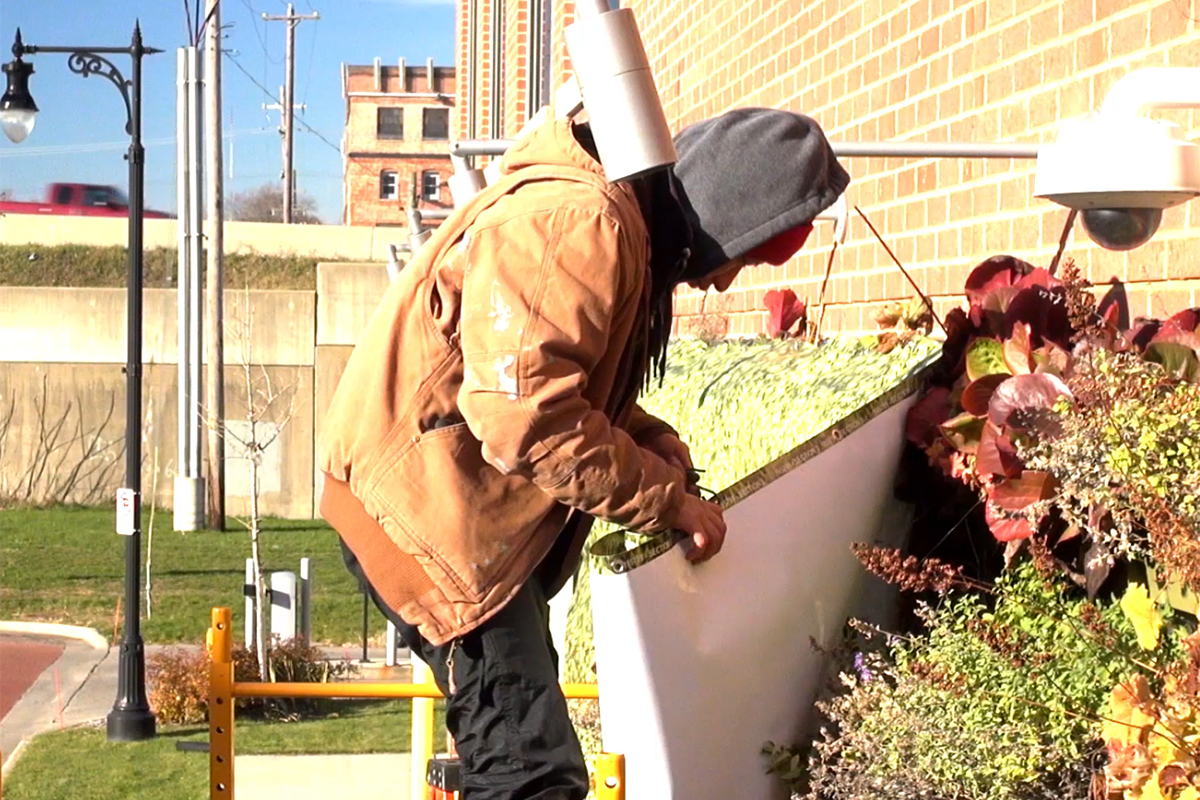

How are they used?
  1. Winter covers are applied just before the soil freezes, appx. Dec. 1 in Michigan for example, and only after THROROUGHLY WATERING THE SOIL (the day before covering). The plants “should not” be pruned before they are applied. This helps hold in moisture.
  2. Winter covers are typically removed during mid to late March in Michigan for example.  Upon removal, plants are immediately and thoroughly watered (and thereafter watered according to need—see LiveWall watering chart), but not pruned until after danger of late frost, as they will have tender new shoots among last years’ foliage and stems.
How are they attached?

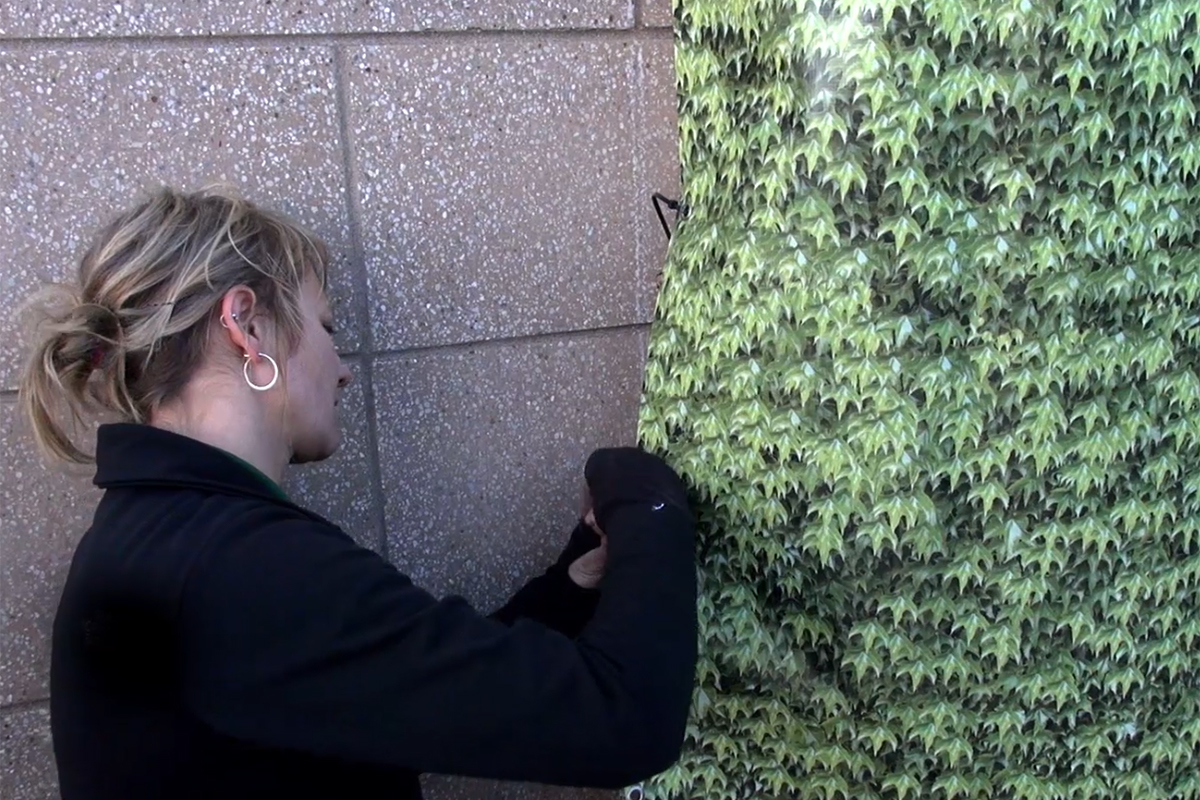

  1. They are tightly applied with zip ties, bungee straps or ¼ inch nylon rope. They can be anchored into the support wall, the LiveWall frame, or the planter boxes. Some installers drill small holes in the top or bottom lip of the planters, which is relatively unnoticeable. Winter covers should be tightly attached to structure, with every grommet. If the wall is large, it will require multiple covers, and the grommets in the middle should be attached to the planters or structure, rather than just connected together. All grommets should be tightly attached to “structure”.
  2. If the site is very windy, consider adding some strapping or roping material across the face of the cover, to prevent billowing or flapping in strong winds.
What sort of results can I expect?

All walls, exposures and weather conditions are unique, so there are no guarantees. However, where winter covers have been properly used they have greatly improved overwintering success—with some walls in Michigan experiencing nearly 100 % survival.

What are the financial benefits of living walls?2018-04-23T15:12:42+00:00

Vertical gardens will save the property owner on air conditioning and heating costs, and will save on the grocery bill when planted with herbs and vegetables. There are many additional financial benefits associated with Biophilia in the workplace, retail settings, healing centers, and educational environments. To learn more, read about

The LiveWall System is delivered with mature plants in vertical gardens that are rich with the proper nutrients and irrigated by a metered watering system. As a result, our sustainable system demands less maintenance cost and prolonged plant longevity.

Learn More About These Benefits
How much does a living wall cost?2018-08-13T18:48:12+00:00

The costs that go into a LiveWall® brand living wall are infrastructure (WallTers, VertiRails, RainRails, irrigation components, fasteners, etc.), plants, taxes, labor, rental of installation equipment, and a fair profit for the installer.

The cost will vary with the scale of the living wall project – bigger costs less, smaller costs more (per square foot) – ease of access, plant selections, and complexity of the design. When we add this all up, we project the contractor-installed costs will typically fall within the range of USD $90-$140/sq ft.  The cost of the LiveWall-supplied structural components only are typically delivered for USD $45-$75/sq ft. Keep in mind that site alterations for plumbing, drainage and lighting may be required, too.

If this range is within your budget, we can supply you with a delivered estimate for your project.

For a budgetary estimate of your project, please call 877-554-4065, or email plans or site images to us at sales@livewall.com, or send your request via this form:

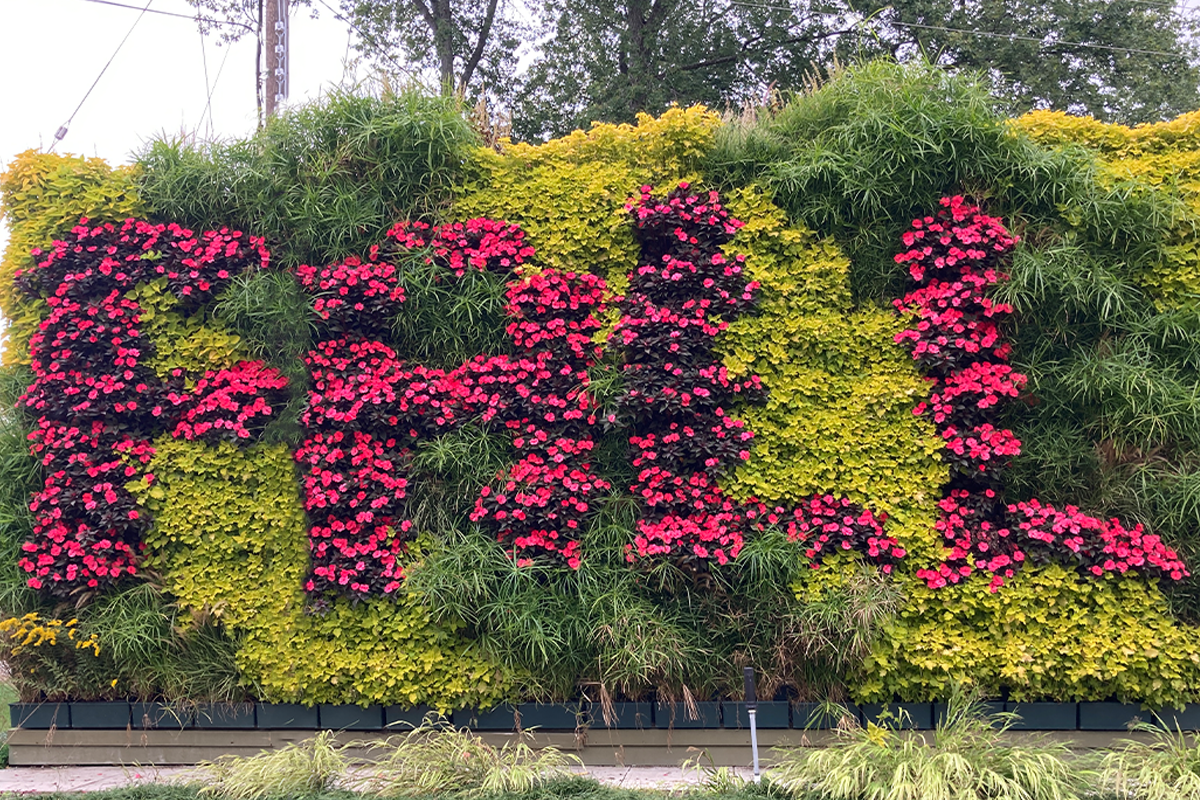

Information about designing green wall systems.

Design

What opportunities are there to share my living wall?2018-08-31T15:43:35+00:00

Please post your projects on the LiveWall.com project showcase!

And, please email us your high resolution photographs of your LiveWall planted walls.  We are always looking for new installations to feature on this site and in future editions of our idea guide and system catalog.

Is hard water a problem for living walls?2018-08-31T16:16:50+00:00

Descaling Catridges ensure water flow

Properly treated hard water poses no health risks and actually provides beneficial nutrients to LiveWall plants. However, buildup of calcium or iron scaling from untreated hard water can potentially impair the flow of water through the irrigation nozzles. Happily, the cost of treating hard water is not an expensive add-on to a LiveWall System installation.

In cases of hard water, use phosphate descaling system to prevent irrigation system blockage or failure.  This can be purchased from LiveWall.  Descaling cartridges should be replaced annually and can be reordered from LiveWall.

Very Large Projects (over 2000 square feet) may require additional treatment

On larger walls, an alternative chemical treatment system may be preferred.  In these cases, LiveWall recommends CH2O, Inc.

For a free water test to determine the type of hardness, how much is in the water, and the cost of treating 10,000 gallons of your water, send them a sample.

CH2O
4141 Boston Harbor Rd. NE
Olympia WA, 98506
Attn. Bruce Kooi
Phone: 360-259-6493

What are the differences between rear and side irrigation feed options?2018-08-31T16:18:36+00:00

Side Irrigation Feed

Advantages

  • Less Expensive

  • Easier to install

  • Thinner profile

Drawbacks

  • Requires 8″ or 16″ wide facing treatment at one or more ends of the installation.

Recommendations

Consider making a hinged facing material over irrigation feed lines for ease of future access for inspection and maintenance.

Facing material not yet installed

Rear Irrigation Feed

Advantages

  • Wall-to-wall coverage

  • May eliminate need for a side treatment (facing material)

Drawbacks

  • More expensive

  • Takes more time to install

  • Deeper profile

Recommendations

May require side treatment depending on site conditions and desired aesthetic. On new construction, consider recessed walls to reduce the living wall profile. For the plants to be flush with the adjacent wall surface, recess green wall area by 11 inches with Standard-sized planters and 13 inches for Large-sized planters. To conceal the thicker furring strips only, recess green wall area 5 inches.

What are the water main line requirements for LiveWall?2018-08-31T16:17:49+00:00

The LiveWall System requires an irrigation feed that is capable of providing sufficient water volume and pressure for each irrigation zone.  The backflow preventer should be hooked up to a feed line that is at least 25PSI, not to exceed 85 PSI.  Pressures over 85 PSI may damage fittings and lead to leaks.

Each valve requires 8-10 gpm per valve (zone), regulated to 15psi pressure, via pressure regulators that are placed upstream of each valve.  In some cases, a booster pump may be required to ensure that the upper valves receive sufficient pressure and flow to water the planter array evenly.

LiveWall quotes mainline irrigation components for each project, and this includes backflow prevention, irrigation controller, and a micron filter to keep any waterborne debris from plugging up the irrigation nozzles.  Installation contractors must source pipe and fittings to connect mainline to the irrigation valves.

How high can a LiveWall be installed?2018-08-31T16:20:21+00:00

Functionally, LiveWall can be placed as high as your building infrastructure, plumbing, and ability to access it for maintenance will allow. It is up to the discretion of the Owner/Architect/Engineer as to the appropriateness of the system at any given height, with all health, safety and environmental factors to be considered.

Keep in mind that the taller the building, the more substantial the wind forces, particularly upward lifting wind forces. LiveWall specifies the use of its proprietary WindClip™ on installations above two stories.

For more information, consult our engineering section and please contact us at sales@livewall.com or call 877-554-4065.

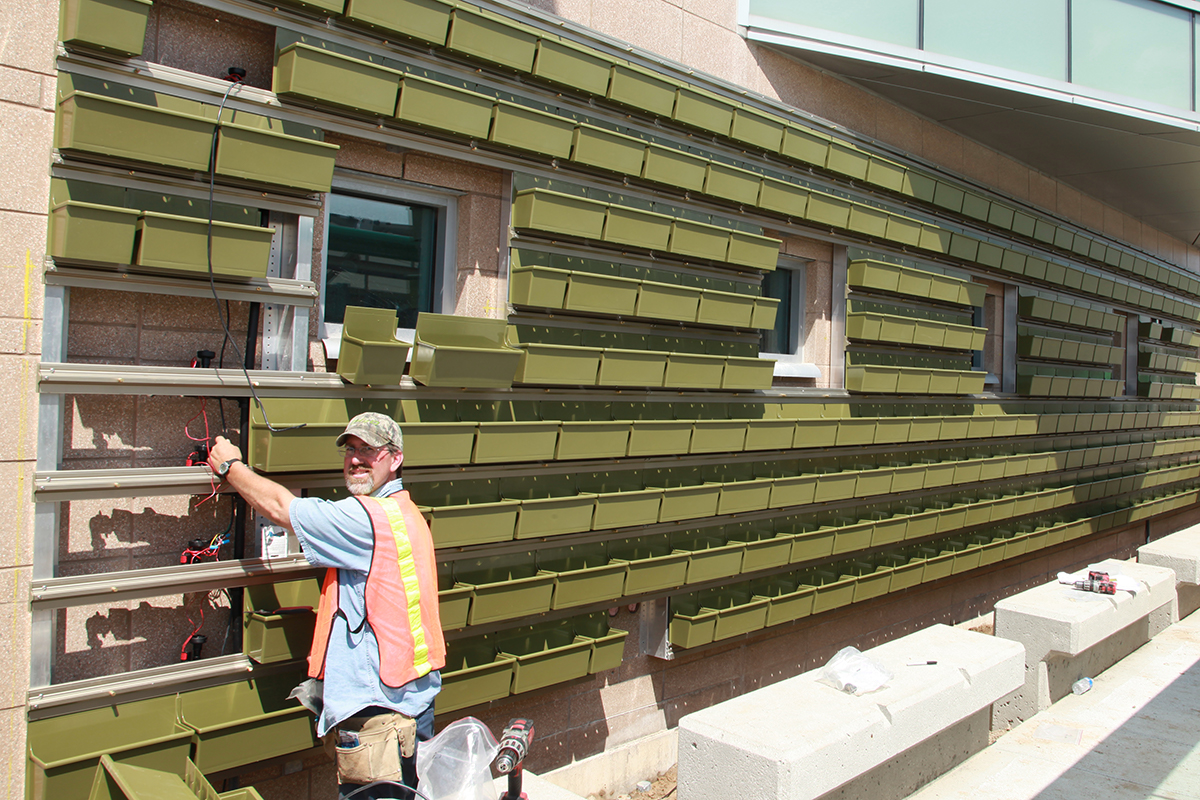

Engineering Considerations
Which fasteners are recommended to anchor the LiveWall system to the building wall?2018-08-31T16:19:19+00:00

The LiveWall system includes furring tracks which provide flexibility in design over a number of different applications. The building wall design and means of fastening LiveWall to the wall system are the responsibility of the local architect and/or structural engineer and installation contractor and must comply with local codes.  The installation contractor will be responsible to select appropriate anchors.

We contacted Fastenal and HILTI for their recommendations for various types of wall structures, and compiled them below (based on 18 pounds per square foot).  Contact your preferred anchor manufacturer to confirm suitability for your application.  Please note that adhesives should not be used.

Wall Material Fastener Type Size Pilot Hole MFG/ Vendor Part
Brick Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
CMU Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
Mortar Joints Not Recommended
Poured Walls Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
Steel Studs Ballistic Point, Single Fastener 0.157-1″ N/A HILTI X-U 27 P8 TH

Metal “Tophat” & 8mm Plastic

Aluminum Studs Ballistic Point, Single Fastener 0.157-1″ N/A HILTI X-U 27 P8 TH

Metal “Tophat” & 8mm Plastic

Wooden Studs Torx Hex Washer Head Screw Anchor 1/4″ x 1-1/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-1/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-1/4″ 1/4″ Fastenal 0131211 1/4″ x 1-1/4″ Hex Washer, Hex Drive, St Steel
EIFS Varies, fasten through Exterior insulation and finish system (EIFS) to structure below.
How much does the LiveWall system weigh?2018-08-31T16:19:37+00:00

Using the Standard sized planters, LiveWall structures weigh from 10 to 15 pounds per square foot when saturated and vegetated with typical upright growing plants.  Long trailing vines may increase this weight.

Using the Large sized planters, LiveWall structures weigh from 18 to 22 pounds per square foot when saturated and vegetated with typical upright growing plants.  Long trailing vines or very large, succulent foliage may increase this weight.

Can the LiveWall components be cut to fit?2018-08-31T16:19:54+00:00

LiveWall is a soil-based living wall system that utilizes molded-planters, and the structures must be designed in the increments required to accommodate full planters:

Horizontal spacing:  16″ on center

Vertical Spacing: Large Planters (Indoors or Outdoors): 16″ on center, Standard Planters (Outdoors): 12″ on center

Typically, the only components that you would need to cut to fit are the furring strips and irrigation lines.  RainRail® irrigation conduit slot rails are manufactured in a variety of lengths divisible by 16 inches. Our design staff chooses appropriate RainRail lengths to eliminate field cutting. In some cases, field conditions may not match the site plans provided to LiveWall and custom cutting may be required. In those cases, the rails must be cut to 16 inch increments, and the cut end will have to be cleaned of all burs and debris to prevent irrigation nozzles clogs.

Can existing buildings be retrofitted with green walls?2018-08-31T16:20:11+00:00

In most cases the answer is, yes. In some cases it may take a little redesign for the additional weight of the LiveWall modules, but the principal force of the LiveWall system is downward, so most of the time retrofitting is relatively easy. A qualified engineer should always be consulted for retrofit applications.

How do I select green wall plants?2018-08-14T11:40:20+00:00

Depending on the wall orientation, climate, and design intent, designers may choose from a broad variety of plant types. These include:

LiveWall has trialed hundreds of plants and has compiled our findings in living wall plant selection and pairing design guides for each of the plant types above. Copies of the plant selection and pairing guides are available to customers. To determine which plant types are best for your project, please contact us at sales@livewall.com or call 877-554-4065, or click here to request a plant selection guide.

For inspiration, click below to see a gallery of projects by type of plants.

Annuals
Perennials
Edibles
Succulents
Tropicals
How do I design a living wall?2018-04-23T15:22:22+00:00

Designing a living wall or vertical garden may not be something that you do everyday, so we have made it easy. We are happy to facilitate custom designs for larger scale commercial applications, and we have kits for smaller projects.

With a photo or drawing, and following a discussion of project specifics, one of our staff designers will be pleased to provide you with a price estimate.  With every order, LiveWall produces shop drawings to indicate the layout of the rails, planters and irrigation valve assembly.

For more information, please contact us at sales@livewall.com or call 877-554-4065.

Professional Design Tools
Questions about how the LiveWall system functions.

Function

Are green walls fire resistant?2018-08-31T16:24:19+00:00

LiveWall is a building facade system and as such is not designed to be fire resistant.  The planter module material is rated at 780°F flash point and burns at 450°F.

The soil is relatively nonflammable, and the plants are variable.  If fleshy, succulent plants are used, they will actually be a fire deterrent, and if grasses are used and allowed to dry out, they are potentially flammable.

What is needed for a successful vertical garden?2018-08-31T15:43:09+00:00

A vertical garden, or living wall used to grow food such as vegetables, herbs and fruits, requires several things – proper orientation, lighting, water, drainage and nutrition. LiveWall supports these basic plants needs and yields healthy vertical gardens.

Orientation
Plants need proper orientation to grow in a healthy manner, with the roots growing toward ground and leaves toward the sun.

In nature, nearly every edible plant grows with its roots toward the center of the earth (positive geotropism) and its stems and leaves toward the sun (negative geotropism).  Plants organs also tend to grow in a straight line (known as autotropism).

When the plants are turned sideways in an unnatural orientation that results in unnatural growth patterns, as is the design of a number of vertical garden systems, they divert energy from foliar and fruit production in effort to correct their orientation. Some systems designed in this manner may also be prone to soil erosion and can be difficult to water or fertilize.

LiveWall offers natural orientation, with the plant roots growing downward and stems and leaves growing upward.

Light
Vertical gardens used for growing herbs and vegetables require abundant sunlight.

In most cases, typical indoor lighting is insufficient in intensity and inadequate in color spectrum to grow healthy edibles. Unfortunately, the small herb wall nested underneath your kitchen cabinets is not likely to perform well unless its facing a large, open window that gets several hours of direct sunlight daily, or supplemented with an intense light source of the right spectrum (such as the 15 degree Norb® bulb).

An exterior living wall planted with edibles and receiving sufficient direct sunlight can produce abundant yields, approximately 1 ounce per square foot per week of greens and herbs.  Typically, food living walls perform best outdoors on south- or west-facing walls.

Water
Vertical garden vegetables such as tomatoes require frequent watering to bear fruit.

As with any plants, supplying the optimum amount of water — not too little and definitely not too much — is critical to success. With the LiveWall system, young edible plants will likely require just one minute per day of irrigation during summer months. As they grow larger, the green wall likely will need two minutes per day of irrigation. In extreme, prolonged heat, longer run times may be needed.

Our seasonal irrigation chart recommends exact runs times based upon wall orientation and average daily temperatures. Our vertical gardens are shipped with controllers or hose timers (on smaller applications), which can be set to run on a schedule. So, you are free to go on vacation without needing to find someone to care for the plants. In volunteer-run or community gardens, this is insurance against gaps in staffing. And, for restaurants, this means one less distraction from spending time in the kitchen.

Drainage
LiveWall planters and planter inserts have drain holes that allow each row of plants to drain if needed.

Proper drainage is perhaps the most overlooked plant need in competing vertical garden designs.  Positive drainage is necessary to prevent diseases, fungal or bacterial infections, and salt build-up in living wall planters.

LiveWall systems are designed to drain for healthy roots.

Nutrition
Fertilizer is necessary to grow healthy herbs and vegetables in a living wall.

Vegetables, greens, and herbs require supplemental nutrition to produce foliage and fruit for consumption.

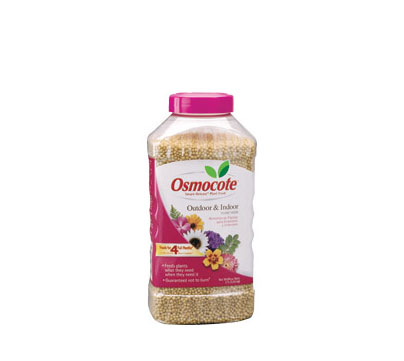

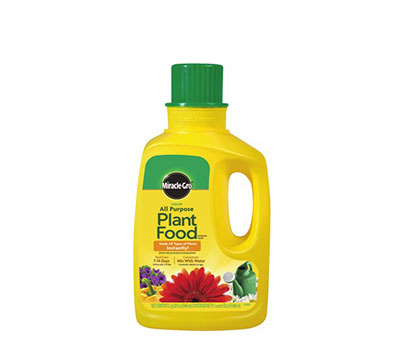

LiveWall makes it easy to fertilize.  On outdoor systems, a granular, controlled-release fertilizer can be applied, typical once or twice per growing season.  Alternatively, a fertigation unit feeds metered amounts of liquid plant food into the water at each irrigation event.

Easy replanting
Most herbs and vegetables have a limited lifecycle, so swapping them at the onset of each growing season should be easy.

Most edibles by their nature are annuals and require replanting each growing season.  With this in mind, we designed our vertical gardens to make the planting process easy. Removable planter inserts allow for the harvested, spent plants to be emptied and composted quickly and efficiently.

If desired, these inserts allow for young plants to be be started in a greenhouse. When the danger of frost has passed, the established vegetables or greens are simply dropped into place in the living wall.

What do outdoor and indoor LiveWall applications have in common?2018-08-31T16:21:15+00:00
  • They both work—very well.
  • Almost effortless.
  • Happy owners.
  • Healthy plants—systems parallel nature.
  • Same helpful design staff.
  • Same high quality, architectural grade materials.
  • Same great customer service.
Indoor Green Walls
Outdoor Green Walls
What are the key differences between the outdoor and indoor LiveWall systems?2018-08-31T16:21:23+00:00

When installing living walls indoors, water containment is critical:

  • The wall planters are rear-draining, and would include a rubber hose drain assembly to contain runoff water.
  • The indoor wall planters hold twice the soil volume as the standard outdoor wall planters to provide ample growing space for a wide selection of tropical plants.

In outdoor green wall applications, the designer has more options for planter size, drainage method and water delivery.

  • Large wall planters (recommended in hot climates and for holding larger perennials and grasses in cold climates) are available with a bottom drain or a rear drain option (when runoff water must be contained, such as over doorways, windows).  These are spaced 16″ on center vertically.
  • Standard wall planters have a bottom drain option, and are most commonly used with annuals, edibles, succulents, and a number of cold-winter hardy perennials.
  • Choice of spray nozzles (typically recommended for outdoors), or drip irrigation (when site is sensitive to runoff from the plants).
Indoor Green Walls
Outdoor Green Walls
What’s so special about the LiveWall® System?2018-04-23T15:24:35+00:00

First and foremost, LiveWall is designed by career horticultural professionals to grow healthy plants. From top to bottom, LiveWall’s vertical garden planters create a natural growing environment. We employ only our TopSide® technology, whereby the soil is oriented horizontally, unlike some competitors’ products, the plants grow upward from the top of the soil and the roots grow downward, as they do in nature. Likewise, with our unique RainRail™ mounting rail/irrigation conduits, the LiveWall System waters your plants naturally, like rain, but in evenly metered amounts along every tier of your living wall to sustain nutrient levels and plant health.

A living wall or vertical garden from LiveWall is unique in its simplicity, easy installation and sustainability. Our WallTer® wall-planters are high-impact, UV resistant moldings and the unique insert make pre-growing and planting simple. The LiveWall plants are typically pre-grown for instant maturity, instant benefits, predictable maintenance and low life-cycle costs.

Finally, a living wall from LiveWall is absolutely beautiful, and is attractive even when the plants are dormant. LiveWall can be used in both interior and exterior applications. It is effective for commercial, industrial, educational, governmental and residential projects. Although beautiful and functional in suburban and rural installations, LiveWall is particularly suited for the urban dwelling environment and is scalable. Our vertical gardens work beautifully in the most intimate urban applications as well as large scale, multi-story commercial projects and, in either case, can be installed with great efficiency.

Design flexibility is enormous and ranges from the use of annual plants for colorful patterns and waves of flowers to long-lived succulents, perennials, herbs, and vegetables. To meet your requirements, LiveWall modules can arrive at the job site fully vegetated in WallTer Inserts. Maintenance is easy and replacement of the plants is quick and economical.

Frequently asked questions about living wall installation.
LiveWall Installation Guides

Installation

Can the outdoor green wall system be installed in the winter?2018-08-31T16:15:22+00:00

The infrastructure of the LiveWall system can be installed in every season, with some caveats:

  • The irrigation system should not be activated at temperatures at or below freezing. Thus, the irrigation system will need to wait to be tested until temperature climbs above freezing.
  • Nozzles should not be installed until the irrigation system has been tested and run to flush out any debris introduced during the installation.
  • Generally, plants should be not be installed during winter.  We recommend that they are held at the nursery until the spring.

To minimize installation time, please familiarize yourself with the installation instructional video on this website.

LiveWall's structure can be installed in the winter.
How long does it take to install the LiveWall System?2018-08-31T16:15:32+00:00

Our time studies indicate that it takes about 3/10 (.3) to 1/2 (.5) man-hour of labor per square foot.  It will be somewhat greater for smaller applications and less for larger applications.

Is the LiveWall system simple to install?2018-08-31T16:23:27+00:00

Yes.  Among the commercial-grade planted living wall products, LiveWall is among the simplest to install.

LiveWall installation requires little guesswork, and can be completed with common tools of typical tradesmen.  The irrigation system is integrated into the planter array, installation steps are spelled out in our installation guide and video, and custom shop drawings are produced with each order.

Fast easy installation is the norm, and this equates to economical installation.

How is LiveWall typically installed?2018-08-31T16:15:58+00:00

LiveWall is usually installed by professional contractors specializing in landscape, irrigation, plumbing, siding or general construction.

Need a referral to a local contractor?

Contact Us
What are the water main line requirements for LiveWall?2018-08-31T16:17:49+00:00

The LiveWall System requires an irrigation feed that is capable of providing sufficient water volume and pressure for each irrigation zone.  The backflow preventer should be hooked up to a feed line that is at least 25PSI, not to exceed 85 PSI.  Pressures over 85 PSI may damage fittings and lead to leaks.

Each valve requires 8-10 gpm per valve (zone), regulated to 15psi pressure, via pressure regulators that are placed upstream of each valve.  In some cases, a booster pump may be required to ensure that the upper valves receive sufficient pressure and flow to water the planter array evenly.

LiveWall quotes mainline irrigation components for each project, and this includes backflow prevention, irrigation controller, and a micron filter to keep any waterborne debris from plugging up the irrigation nozzles.  Installation contractors must source pipe and fittings to connect mainline to the irrigation valves.

Can the LiveWall components be cut to fit?2018-08-31T16:19:54+00:00

LiveWall is a soil-based living wall system that utilizes molded-planters, and the structures must be designed in the increments required to accommodate full planters:

Horizontal spacing:  16″ on center

Vertical Spacing: Large Planters (Indoors or Outdoors): 16″ on center, Standard Planters (Outdoors): 12″ on center

Typically, the only components that you would need to cut to fit are the furring strips and irrigation lines.  RainRail® irrigation conduit slot rails are manufactured in a variety of lengths divisible by 16 inches. Our design staff chooses appropriate RainRail lengths to eliminate field cutting. In some cases, field conditions may not match the site plans provided to LiveWall and custom cutting may be required. In those cases, the rails must be cut to 16 inch increments, and the cut end will have to be cleaned of all burs and debris to prevent irrigation nozzles clogs.

Contractor to source fasteners for installation between LiveWall and building structure

Fasteners

Which fasteners are recommended to anchor the LiveWall system to the building wall?2018-08-31T16:19:19+00:00

The LiveWall system includes furring tracks which provide flexibility in design over a number of different applications. The building wall design and means of fastening LiveWall to the wall system are the responsibility of the local architect and/or structural engineer and installation contractor and must comply with local codes.  The installation contractor will be responsible to select appropriate anchors.

We contacted Fastenal and HILTI for their recommendations for various types of wall structures, and compiled them below (based on 18 pounds per square foot).  Contact your preferred anchor manufacturer to confirm suitability for your application.  Please note that adhesives should not be used.

Wall Material Fastener Type Size Pilot Hole MFG/ Vendor Part
Brick Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
CMU Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
Mortar Joints Not Recommended
Poured Walls Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
Steel Studs Ballistic Point, Single Fastener 0.157-1″ N/A HILTI X-U 27 P8 TH

Metal “Tophat” & 8mm Plastic

Aluminum Studs Ballistic Point, Single Fastener 0.157-1″ N/A HILTI X-U 27 P8 TH

Metal “Tophat” & 8mm Plastic

Wooden Studs Torx Hex Washer Head Screw Anchor 1/4″ x 1-1/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-1/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-1/4″ 1/4″ Fastenal 0131211 1/4″ x 1-1/4″ Hex Washer, Hex Drive, St Steel
EIFS Varies, fasten through Exterior insulation and finish system (EIFS) to structure below.
More information about green wall irrigation

Irrigation

Do living walls need to be watered during winter?2018-08-31T16:16:21+00:00

Warm Climate

In climates with warm winter weather, irrigation will need to continue throughout the winter.  Less water is typically required during the coldest months.  Follow the LiveWall irrigation chart to adjust the run time and frequency as the temperatures  change.

In the event of an occasional freeze, it is important to blow out the irrigation lines an prevent cracks and leaks, and reactivate the system as the weather warms and plants dry out.

Important

Your outdoor living wall’s irrigation system may need to be blown out and reactivated multiple times during the winter months to sustain perennials.

Cold Climate

To sustain perennial plants through the winter, the soil must not excessively dry out. The plants in the living wall will not receive sufficient moisture from rainfall due to its vertical nature, and because the planters are exposed, the plants will enter dormancy earlier than the plants in the ground will. Therefore, you will likely need to water your perennial plants before the danger of freezing has passed and typically much sooner than you begin irrigating your at grade landscape.

  • If the application is planted with perennial plants and it is large, or commercial scale, activate the system as needed – but do so only on warm days where water can flow and drain freely, and only enough to remoisten dry soil.  The irrigation system will need to be blown out after each use until the danger of freezing has passed.
  • If the application is small scale, then wintertime watering can be implemented as indicated above, or simply by using a hand held hose or watering can as the weather necessitates.
When do the irrigation lines need to be blown out on outdoor green walls?2018-08-31T16:16:31+00:00

In northern climates, deactivate the system in fall by blowing out the irrigation lines with compressed air, not to exceed 20 psi, and turning the irrigation controller off.  Empty lines and valves are required to avoid freeze thaw damage, so this needs to be done before the first hard freeze of the system.

After blowing the system out, the rain may effectively water the top few rows, and keep it moist until freezing occurs. But, the lower levels can still dry out and should be monitored and kept moist unless frozen.

It is not uncommon to need to irrigate a few times during wintertime warm ups. If needed, you can water with a hose and hand-held sprayer or use the built-in system, then blow it out afterward until the danger of freezing has passed.

Important

If you have perennial plants, throughout winter, the soil should be checked during periods of thawing to ensure proper moisture. The soil should be moist, not wet or boggy, or dry, whenever the soil is not frozen solid.

How does the height of the living wall system affect irrigation?2018-08-31T16:16:41+00:00

On outdoor walls, the higher up you go, the windier the conditions tend to be, and you will get more evaporative drying.  To compensate for this additional loss, adjust to run the irrigation longer on the upper zones.  You can expect to lose about ½ PSI of pressure per each foot of elevation. This corresponds to about ½ PSI for each tier of the LiveWall system and on very tall walls, booster pumps may be needed to sustain pressure. Plumbing should be sized and engineered accordingly.

Is hard water a problem for living walls?2018-08-31T16:16:50+00:00

Descaling Catridges ensure water flow

Properly treated hard water poses no health risks and actually provides beneficial nutrients to LiveWall plants. However, buildup of calcium or iron scaling from untreated hard water can potentially impair the flow of water through the irrigation nozzles. Happily, the cost of treating hard water is not an expensive add-on to a LiveWall System installation.

In cases of hard water, use phosphate descaling system to prevent irrigation system blockage or failure.  This can be purchased from LiveWall.  Descaling cartridges should be replaced annually and can be reordered from LiveWall.

Very Large Projects (over 2000 square feet) may require additional treatment

On larger walls, an alternative chemical treatment system may be preferred.  In these cases, LiveWall recommends CH2O, Inc.

For a free water test to determine the type of hardness, how much is in the water, and the cost of treating 10,000 gallons of your water, send them a sample.

CH2O
4141 Boston Harbor Rd. NE
Olympia WA, 98506
Attn. Bruce Kooi
Phone: 360-259-6493

What are the differences between rear and side irrigation feed options?2018-08-31T16:18:36+00:00

Side Irrigation Feed

Advantages

  • Less Expensive

  • Easier to install

  • Thinner profile

Drawbacks

  • Requires 8″ or 16″ wide facing treatment at one or more ends of the installation.

Recommendations

Consider making a hinged facing material over irrigation feed lines for ease of future access for inspection and maintenance.

Facing material not yet installed

Rear Irrigation Feed

Advantages

  • Wall-to-wall coverage

  • May eliminate need for a side treatment (facing material)

Drawbacks

  • More expensive

  • Takes more time to install

  • Deeper profile

Recommendations

May require side treatment depending on site conditions and desired aesthetic. On new construction, consider recessed walls to reduce the living wall profile. For the plants to be flush with the adjacent wall surface, recess green wall area by 11 inches with Standard-sized planters and 13 inches for Large-sized planters. To conceal the thicker furring strips only, recess green wall area 5 inches.

How is the watered delivered to the plants with LiveWall?2018-08-31T16:17:30+00:00

LiveWall is watered either with spray nozzles or drip emitter assemblies attached to the RainRail irrigation conduits.  These are horizontal slot rails that are hollowed out so that water may pass through them to the irrigation nozzles.

Watering Components
What are the water main line requirements for LiveWall?2018-08-31T16:17:49+00:00

The LiveWall System requires an irrigation feed that is capable of providing sufficient water volume and pressure for each irrigation zone.  The backflow preventer should be hooked up to a feed line that is at least 25PSI, not to exceed 85 PSI.  Pressures over 85 PSI may damage fittings and lead to leaks.

Each valve requires 8-10 gpm per valve (zone), regulated to 15psi pressure, via pressure regulators that are placed upstream of each valve.  In some cases, a booster pump may be required to ensure that the upper valves receive sufficient pressure and flow to water the planter array evenly.

LiveWall quotes mainline irrigation components for each project, and this includes backflow prevention, irrigation controller, and a micron filter to keep any waterborne debris from plugging up the irrigation nozzles.  Installation contractors must source pipe and fittings to connect mainline to the irrigation valves.

How often do green walls need to be watered?2018-08-31T16:12:14+00:00

The amount of water that green wall plants need can vary greatly.  For this reason, we have developed specific irrigation recommendations based upon the plant type, wall orientation/ light intensity, maturity, and average daily temperatures.  How windy and exposed the site is may have an impact, but it is good to start with the recommendations outlined in the seasonal irrigation chart below and adjust accordingly.

Irrigation Chart:  Outdoor LiveWall with Standard Size Planters and Spray Irrigation

LiveWall recommendations for irrigation run times, outdoor walls with standard size planters and spray irrigation.
Do living walls require irrigation systems?2018-08-31T16:18:15+00:00

In most cases, your LiveWall system will require an automatic irrigation system to keep up with the plants water needs.

The amount of irrigation applied to outdoor will depend on the plants selected, the local climate, specific weather patterns and the wall orientation (south, north, east, west, windward, leeward, high, low, etc.).   Outdoor living walls typically require daily watering for at least a few months of the year.  The LiveWall System enables you to install an automated watering system with precise metering to nurture the vertical garden plants you choose.

We only recommend hand-watered structures for small, indoor, easily-accessible installations.  Contact us to review the irrigation needs of your living wall project.

Contact Us
Norb is a PAR38 LED light bulb that grows healthy plants.
Norb Grow Bulbs

Light

How long should indoor plants be artificially lit?2018-08-31T16:58:13+00:00

Plants need a dark period to rest and prevent metabolic fatigue. Therefore, grow lights should only be run 12-15 hours maximum per day—typically from 7 AM to 8 or 9 PM (to mimic light conditions in tropical regions). The rest of the time, they should be in darkness, or near darkness.

If security lighting is required in the area of the LiveWall, it should be of very low intensity and not directed toward the plants.

Do not run Norb® bulbs (or any bulb labelled as supporting plant growth) on the green wall for more than 15 hours per day.

We recommend running the lighting for the living walls on a dedicated outlet programmed to run for 14 hours per day.

What type of lighting fixtures and bulbs are best for vertical gardens?2018-08-31T16:19:07+00:00

Light fixtures should be adjustable, for direction, and are typically located in front of the living wall and attached to or suspended from the ceiling. Occasionally, they are located at the bottom or sides of the LiveWall structure, to create proximity to the plants, and thereby provide sufficient light intensity across the entire wall surface. Often times, track lighting is used as it is contemporary, comes with many fixture options, and is relatively inexpensive.

In respect to the light source (bulb), the key considerations are proper light spectrum and light intensity. Plants tend to respond to blue and red wavelengths and in proportion that is not available from incandescent or typical office-type LED lights.  There are, of course, LED grow lights composed of red and blue diodes—but they tend to cast a purple light which looks odd, unnatural and unattractive.

For this reason, LiveWall LLC developed the Norb® (Nutri-Orb) bulb, a specialized White-Light LED grow bulb that provides the right spectrum for growing plants. With Norb® bulbs, the plants can be healthy and “look right under white.”

Norb is a PAR38 LED light bulb that grows healthy plants.
Norb LED Grow Bulbs

Track lighting offers flexibility

Indoor green wall with artificial LED lighting.

This living wall installation is lit by 12 total Norb® bulbs directed at the 8’ x 8’ and 11’ x 11’ walls. These bulbs are angled from track lighting attached to the 12 foot ceiling. This configuration provides plenty of light and serves as an example of about how many lights would be needed for such an installation.

Where on the ceiling should lighting be affixed?

While each light source may have a different beam angle and intensity, it is important to keep in mind not only the amount of distance that the planters sit from the wall, but that the plants may extend from the planters, particularly if billowing plants are selected.

As a rule of thumb, when using the LiveWall Norb® brand bulbs, we recommend setting the track lighting fixture back 7′ from the wall it will light.  This should allow ample room for the vegetation and good light distribution.

The following lights also support plant growth

Combination High Pressure Sodium / Metal Halide lights are usually quite powerful and best suited for larger walls.  They are excellent for growing plants as they have a light spectrum that is relatively similar to the sun.

Metal Halide lights have a good spectrum for growing foliage. They contain a lot of blue light in their spectrum, but appear white in color. They usually require a ballasted fixture; however, there are a few, typically 25 watt, internally-ballasted bulbs in the marketplace—which are suitable to use in conventional track-lighting fixtures.

Florescent lights have a good plant growing spectrum, but they may not provide sufficient intensity if mounted from a distance, so ensure close placement to the living wall. These are typically only acceptable for small applications, and it may be difficult to find attractive fixtures to pair with them.

The following lights are not recommended for growing plants

Halogen lights do not have the proper spectral components for growing plants.

High Pressure Sodium lights lack blue light in their spectrum needed to support indoor foliage plants and the light they emit tends to look yellow. Their spectrum supports flowering, and therefore they may be a good choice for indoor plants when combined with a Metal Halide light.

Ordinary LED lights, i.e. LED lights that are commonly used in office or exterior lighting—typically with color temperatures of 3000K-4500K—ARE NOT SUITABLE FOR PLANT GROWTH.  If LED lighting is desired, the LiveWall® Norb® (Nutri-Orb) LED bulb should be specified.

What light intensity is required for indoor green walls?2018-08-31T16:22:00+00:00

Light intensity is a measure of light energy hitting the plant surface and is also very important to plant health. For traditional interior lighting applications, light intensity is discussed in terms of foot-candles of light energy. While foot-candles is not the preferred measure of light intensity by horticultural scientists (who prefer a measurement in terms of “photo active radiation”), we have found that foot-candles will suffice if a proven light source, such as LiveWall’s Norb® bulb, or one of the other recommended methods, is chosen. And, for most tropical foliage plantings 200-400 foot-candles of light energy hitting the foliage, is sufficient.

LiveWall, LLC has developed a plant selection and pairing guide for indoor plants based upon their lighting and water needs, and growth habit. This LiveWall design guide should be consulted for the correct light intensity for the type of plants that one intends to use. We have categorized the plants into lighting needs as follows:

Bright Light

Indoor location with direct light from a south or west exposure where the plants receive 2 or more hours of direct sun, but preferably not during the hottest part of the day.

Artificial Bright Light is approximately equal to a four tube florescent fixture in close proximity to the planting, in the range of 400 to 600+ foot candles, for 12 to 15 hours per day.

Medium Light

Indoor location with direct light for a couple of hours in the morning or afternoon (from east or west facing windows), or from a south facing window provided the location is several feet interior of south facing windows.

Artificial Medium Light is approximately equal to a two tube florescent fixture, 2 or 3 feet from the foliage, in the range of 100 to 400 foot candles for 12 to 15 hours per day.

Low Light

Low Light pertains to an indoor location that is not close to windows or supplemental lighting—typically a north or east exposure.

Artificial Low Light is enough to read a newspaper, in the range of 25 to 100 foot candles for 12 to 15 hours per day.

For a copy of the LiveWall Indoor Plant Design Guide, contact us at sales@livewall.com or call 877-554-4065.

Is supplemental lighting required for indoor living walls?2018-08-31T16:22:14+00:00

Lighting is critical to the success of your living wall. In nearly every indoor application, supplemental lighting will be necessary to ensure the proper intensity and spectrum for plant growth. Designers should specify fixtures, bulbs and placement to ensure that the living wall is evenly lit and receives the full spectrum of lighting required to grow healthy plants.

Fully vegetated green wall
Commonly asked questions about Maintenance.
LiveWall Maintenance Guides

Maintenance

How often do green wall plants require replacement?2018-08-31T15:45:08+00:00

The need to replant during spring with vary with the severity of winter, diligence to proper care, and plant material.

Annuals, Vegetables, & Herbs

These plants require replacement at the beginning of every growing season.  There are two ways of doing this:

  1. Drop off your empty planter inserts at a local nursery to have them grow the plants in their greenhouses.  If they begin 6-8 weeks prior to your last frost date, you can begin harvesting right away once you plant them.
  2. Plant the liners yourself using 2 or 3 inch starter plants from your local garden center.

In any event, it is important to thoroughly wash out the planter inserts and start with fresh potting soil.

Soil Type

Organically rich potting soil, available at every garden center.

Perennials & Tropicals

By definition, perennials, including tropical perennials, have the potential to live forever.  But, when grown in a container such as the living wall planter insert, they will eventually become root-bound, and at some point will need to be replaced, or divided and replanted.  How long they will go with out the need for division is a factor of the particular plant’s habit, its root characteristics, and climate.  Many perennials are expected to last up to three years before becoming root-bound in the LiveWall system.*

How do you know when it is time to replant and divide a perennial?  You know it is time when the plant has become so root-bound that the growth and flowering become stunted.  When this occurs, the plants can be removed, divided and replanted.  Or, they can be composted and replaced with new plants.  Replacements should be done during spring or early summer so that the plants become well established prior to winter.

Soil Type

Potting soil containing pine bark, as it decomposes very slowly.

Sedums & Succulents

Follow LiveWall's succulent plant design guide recommendations for selection and pairing.

Because most Sedums and succulents have very fine root systems, they have the potential to survive for many years without becoming root bound.  Some could be sustained for over a decade depending on the species and care.  As such, they need to be potted in a soil that will hold its structure for many years.

Soil Type

“Alpine” soil-type that is gritty and highly inorganic (similar to blends used for green roofs).

*Consider a vinyl cover to reduce winter perennial plant losses.

Managing moisture of perennial plants during winter can be challenging.  LiveWall supplies grommeted, vinyl winter covers to aid in the overwintering of “perennial” plants in cold winter climates.

Why is this needed?

In cold winters, especially those with sunny windy conditions, the plants can literally be “freeze-dried”. By covering with a vinyl winter cover, this effect is greatly lessoned. Winter covers act to moderate temperature highs and lows, block the wind, and hold in moisture.

Winter Cover Use Instructions
What do they look like?

They are printed with an attractive mid-green, translucent Boston ivy graphic.

How are they used?
  1. Winter covers are applied just before the soil freezes, appx. Dec. 1 in Michigan for example, and only after THROROUGHLY WATERING THE SOIL (the day before covering). The plants “should not” be pruned before they are applied. This helps hold in moisture.
  2. Winter covers are typically removed during mid to late March in Michigan for example.  Upon removal, plants are immediately and thoroughly watered (and thereafter watered according to need—see LiveWall watering chart), but not pruned until after danger of late frost, as they will have tender new shoots among last years’ foliage and stems.
How are they attached?
  1. They are tightly applied with zip ties, bungee straps or ¼ inch nylon rope. They can be anchored into the support wall, the LiveWall frame, or the planter boxes. Some installers drill small holes in the top or bottom lip of the planters, which is relatively unnoticeable. Winter covers should be tightly attached to structure, with every grommet. If the wall is large, it will require multiple covers, and the grommets in the middle should be attached to the planters or structure, rather than just connected together. All grommets should be tightly attached to “structure”.
  2. If the site is very windy, consider adding some strapping or roping material across the face of the cover, to prevent billowing or flapping in strong winds.
What sort of results can I expect?

All walls, exposures and weather conditions are unique, so there are no guarantees. However, where winter covers have been properly used they have greatly improved overwintering success—with some walls in Michigan experiencing nearly 100 % survival.

How do I fertilize the living wall?2018-08-31T16:14:06+00:00

The method of fertilization depends upon the water delivery method and whether a fertilizer injector was installed on the mainline.

Fertilizer Options Chart

All applications of fertilizer are the sole responsibility of the applicator.

For more fertility management information, please see the Maintenance section of our website.

Automatic Fertilization

LiveWall Fertilizer Injector
Automatic Fertilizer Instructions

LiveWall systems may be purchased with a fertilizer injector that is tied into the irrigation system. The fertigation system injects a low dose of fertilizer each time your living wall is irrigated.

Manual Slow Release Granular Fertilizer

Outdoor walls and hand-watered indoor walls may be fertilized once annually using a granular slow release fertilizer. We recommend Scotts Osmocote®, which releases nutrition slowly for the entire growing season. This product is available from most garden centers. Typically, one teaspoon of fertilizer shaken evenly across the soil surface of each Standard sized wall planter during the spring is sufficient to feed plants through the growing season. Half-sized wall planters may require half as much fertilizer. This will vary with formulation and in all cases, the labeled directions on the package should be followed.

Do not use granular fertilizer for indoor walls with automatic irrigation. The granules require water to run over the surface to activate, and LiveWall indoor systems include drip stakes that inject water directly into the soil.

Manual Liquid Fertilizer

Every 6 to 12 months, indoor or outdoor living walls which do not have automatic fertigation may be fed with a higher concentration of liquid feed. Fertilizer may be applied manually according to the label directions using a watering can or a hose.

What concerns are there with salt and chemical deicers?2018-08-31T16:14:15+00:00

Vertical garden plants will be damaged or killed by deicing chemicals.  If the living wall is near walkway areas that are shoveled, use care to throw the snow in another direction as it may contain deicing agents.

Can the LiveWall structure be climbed on for maintenance?2018-08-31T16:14:59+00:00

No.  The LiveWall System is not designed to be climbed on for maintenance or any other reason.  It is designed to hold plants, not a human body.  Climbing on the system could lead to product failure and injury.  Be sure to keep children off the vertical garden tiers, as well.

How much maintenance will my living wall require?2018-08-31T16:15:09+00:00

Anything living requires maintenance, including LiveWall.  Due to the design of the LiveWall system, maintenance requirements will be simple and will vary with the type of plants that have been chosen.  LiveWall provides complete maintenance guides with suggestions for each category of plant.

Annual plants may not require much care at all. However, at the beginning of each year they will need to be replaced with new fully-grown annuals. Simply remove the living wall planter inserts from last year, and drop in the new preplanted inserts for the current year.  For more information, see our planting guide.

If perennial plants are used, they will be subject to the typical maintenance of ground level perennial plantings: removal of spent flower stalks, fertilization, and trimming stems and foliage if they become overgrown. If the plants are deciduous (i.e., they drop their leaves in fall), they will need to be pruned back to the soil level each spring before they break dormancy.  They will also typically require periodic wintertime watering during dry periods above freezing temperature.

Maintenance is Simple, yet CRITICAL

The key to healthy living walls is short, frequent visits.   We recommend twice monthly inspections, and provide a monthly email with seasonally relevant instructions to all owners and contractors caring for a LiveWall brand system.  To receive these updates, submit your email below.

Indoor Maintenance Guide
Outdoor Maintenance Guide
Do living walls need to be watered during winter?2018-08-31T16:16:21+00:00

Warm Climate

In climates with warm winter weather, irrigation will need to continue throughout the winter.  Less water is typically required during the coldest months.  Follow the LiveWall irrigation chart to adjust the run time and frequency as the temperatures  change.

In the event of an occasional freeze, it is important to blow out the irrigation lines an prevent cracks and leaks, and reactivate the system as the weather warms and plants dry out.

Important

Your outdoor living wall’s irrigation system may need to be blown out and reactivated multiple times during the winter months to sustain perennials.

Cold Climate

To sustain perennial plants through the winter, the soil must not excessively dry out. The plants in the living wall will not receive sufficient moisture from rainfall due to its vertical nature, and because the planters are exposed, the plants will enter dormancy earlier than the plants in the ground will. Therefore, you will likely need to water your perennial plants before the danger of freezing has passed and typically much sooner than you begin irrigating your at grade landscape.

  • If the application is planted with perennial plants and it is large, or commercial scale, activate the system as needed – but do so only on warm days where water can flow and drain freely, and only enough to remoisten dry soil.  The irrigation system will need to be blown out after each use until the danger of freezing has passed.
  • If the application is small scale, then wintertime watering can be implemented as indicated above, or simply by using a hand held hose or watering can as the weather necessitates.
When do the irrigation lines need to be blown out on outdoor green walls?2018-08-31T16:16:31+00:00

In northern climates, deactivate the system in fall by blowing out the irrigation lines with compressed air, not to exceed 20 psi, and turning the irrigation controller off.  Empty lines and valves are required to avoid freeze thaw damage, so this needs to be done before the first hard freeze of the system.

After blowing the system out, the rain may effectively water the top few rows, and keep it moist until freezing occurs. But, the lower levels can still dry out and should be monitored and kept moist unless frozen.

It is not uncommon to need to irrigate a few times during wintertime warm ups. If needed, you can water with a hose and hand-held sprayer or use the built-in system, then blow it out afterward until the danger of freezing has passed.

Important

If you have perennial plants, throughout winter, the soil should be checked during periods of thawing to ensure proper moisture. The soil should be moist, not wet or boggy, or dry, whenever the soil is not frozen solid.

How does the height of the living wall system affect irrigation?2018-08-31T16:16:41+00:00

On outdoor walls, the higher up you go, the windier the conditions tend to be, and you will get more evaporative drying.  To compensate for this additional loss, adjust to run the irrigation longer on the upper zones.  You can expect to lose about ½ PSI of pressure per each foot of elevation. This corresponds to about ½ PSI for each tier of the LiveWall system and on very tall walls, booster pumps may be needed to sustain pressure. Plumbing should be sized and engineered accordingly.

How often do green walls need to be watered?2018-08-31T16:12:14+00:00

The amount of water that green wall plants need can vary greatly.  For this reason, we have developed specific irrigation recommendations based upon the plant type, wall orientation/ light intensity, maturity, and average daily temperatures.  How windy and exposed the site is may have an impact, but it is good to start with the recommendations outlined in the seasonal irrigation chart below and adjust accordingly.

Irrigation Chart:  Outdoor LiveWall with Standard Size Planters and Spray Irrigation

LiveWall recommendations for irrigation run times, outdoor walls with standard size planters and spray irrigation.
Do living walls require irrigation systems?2018-08-31T16:18:15+00:00

In most cases, your LiveWall system will require an automatic irrigation system to keep up with the plants water needs.

The amount of irrigation applied to outdoor will depend on the plants selected, the local climate, specific weather patterns and the wall orientation (south, north, east, west, windward, leeward, high, low, etc.).   Outdoor living walls typically require daily watering for at least a few months of the year.  The LiveWall System enables you to install an automated watering system with precise metering to nurture the vertical garden plants you choose.

We only recommend hand-watered structures for small, indoor, easily-accessible installations.  Contact us to review the irrigation needs of your living wall project.

Contact Us
How long should indoor plants be artificially lit?2018-08-31T16:58:13+00:00

Plants need a dark period to rest and prevent metabolic fatigue. Therefore, grow lights should only be run 12-15 hours maximum per day—typically from 7 AM to 8 or 9 PM (to mimic light conditions in tropical regions). The rest of the time, they should be in darkness, or near darkness.

If security lighting is required in the area of the LiveWall, it should be of very low intensity and not directed toward the plants.

Do not run Norb® bulbs (or any bulb labelled as supporting plant growth) on the green wall for more than 15 hours per day.

We recommend running the lighting for the living walls on a dedicated outlet programmed to run for 14 hours per day.

Commonly asked questions about Planting Green Walls.
LiveWall Planting Guide

Planting

How much soil is needed for each LiveWall planter?2018-08-31T15:41:56+00:00

LiveWall Standard size planters are available in two widths. The soil volume of each planter is:
half – 0.109 cu. ft.
full – 0.217 cu. ft.

LiveWall Standard Size Planter Inserts
Standard Planters

LiveWall Large size planters are supplied in a single width. The soil volume of each planter insert is 0.4 cubic feet.

LiveWall Large Size Planter in Sage Color
Large Planters

Please Note:

Depending on the soil type and starter plant size, additional soil may need to be ordered to account for settling.

What type of soil should I use in a green wall?2018-08-31T15:42:28+00:00

The makeup of the growing medium depends upon the plants you choose to grow, as the media should have last to match the life expectancy of the green wall plant.

Annual plants require a good potting soil mix.
For Annuals, Vegetables, Small Fruits, and Herbs

Plants are expected to be used for one full year need a good quality peat-based or coconut fiber-based potting soil. These are available at local garden centers.

Perennials need a good potting soil with perlite, pumice or pine bark.
For Perennials, Vines and Tropicals

Plants that are expected to last for 3 to 5 years before dividing, use a good quality potting soil, with perlite or pumice and/or composted pine bark. Such potting soils will tend to decompose less.

Succulents may last decades without repotting, so need a highly inorganic growing media.
For Succulent Plants

Plants that can last decades without repotting, succulents need a good quality mix, typical of one marketed for rock gardening. The unique quality of such mixes is that they have a high mineral content (e.g. perlite, pumice, or expanded shale) and less organic matter, and therefore do not decompose over time.

ALL Frequently Asked Questions about LiveWall

What’s so special about the LiveWall® System?2018-04-23T15:24:35+00:00

First and foremost, LiveWall is designed by career horticultural professionals to grow healthy plants. From top to bottom, LiveWall’s vertical garden planters create a natural growing environment. We employ only our TopSide® technology, whereby the soil is oriented horizontally, unlike some competitors’ products, the plants grow upward from the top of the soil and the roots grow downward, as they do in nature. Likewise, with our unique RainRail™ mounting rail/irrigation conduits, the LiveWall System waters your plants naturally, like rain, but in evenly metered amounts along every tier of your living wall to sustain nutrient levels and plant health.

A living wall or vertical garden from LiveWall is unique in its simplicity, easy installation and sustainability. Our WallTer® wall-planters are high-impact, UV resistant moldings and the unique insert make pre-growing and planting simple. The LiveWall plants are typically pre-grown for instant maturity, instant benefits, predictable maintenance and low life-cycle costs.

Finally, a living wall from LiveWall is absolutely beautiful, and is attractive even when the plants are dormant. LiveWall can be used in both interior and exterior applications. It is effective for commercial, industrial, educational, governmental and residential projects. Although beautiful and functional in suburban and rural installations, LiveWall is particularly suited for the urban dwelling environment and is scalable. Our vertical gardens work beautifully in the most intimate urban applications as well as large scale, multi-story commercial projects and, in either case, can be installed with great efficiency.

Design flexibility is enormous and ranges from the use of annual plants for colorful patterns and waves of flowers to long-lived succulents, perennials, herbs, and vegetables. To meet your requirements, LiveWall modules can arrive at the job site fully vegetated in WallTer Inserts. Maintenance is easy and replacement of the plants is quick and economical.

What are the reasons to use LiveWall over other living wall systems?2018-04-23T15:11:55+00:00

The LiveWall System is different in design and use from other planted living wall products. For example, when you involve us in your design process and adopt the LiveWall System, you can rely on your living walls to be successful each and every time. LiveWall brings other important benefits, as well, such as excellent aesthetic presentation, instant functional and environmental benefits, substantially lower maintenance, elimination of soil erosion, standardized installation by expert installers, expertly engineered soil and plant selections, durable lasting components, and the pride in another sustainable eco-friendly project.

Simple, effective, attractive, instant, and most of all, great at growing healthy plants, LiveWall represents the best design and the best value in green, living wall systems.

How much does a living wall cost?2018-08-13T18:48:12+00:00

The costs that go into a LiveWall® brand living wall are infrastructure (WallTers, VertiRails, RainRails, irrigation components, fasteners, etc.), plants, taxes, labor, rental of installation equipment, and a fair profit for the installer.

The cost will vary with the scale of the living wall project – bigger costs less, smaller costs more (per square foot) – ease of access, plant selections, and complexity of the design. When we add this all up, we project the contractor-installed costs will typically fall within the range of USD $90-$140/sq ft.  The cost of the LiveWall-supplied structural components only are typically delivered for USD $45-$75/sq ft. Keep in mind that site alterations for plumbing, drainage and lighting may be required, too.

If this range is within your budget, we can supply you with a delivered estimate for your project.

For a budgetary estimate of your project, please call 877-554-4065, or email plans or site images to us at sales@livewall.com, or send your request via this form:

What are the financial benefits of living walls?2018-04-23T15:12:42+00:00

Vertical gardens will save the property owner on air conditioning and heating costs, and will save on the grocery bill when planted with herbs and vegetables. There are many additional financial benefits associated with Biophilia in the workplace, retail settings, healing centers, and educational environments. To learn more, read about

The LiveWall System is delivered with mature plants in vertical gardens that are rich with the proper nutrients and irrigated by a metered watering system. As a result, our sustainable system demands less maintenance cost and prolonged plant longevity.

Learn More About These Benefits
How do green walls reduce noise?2018-04-23T15:13:25+00:00

Plants, soil, trapped air, and moisture in the soil are great acoustic insulators. Studies have shown that green walls can reduce ambient noise by up to 40 decibels, an important benefit to those who work or live close to noisy streets, highways and airports. Because the decibel scale is logarithmic, every 10-decibel reduction equals a tenfold decrease in intensity.

If you live on a busy street, ambient noise levels may average 75 decibels. The design for a quiet office may target 60 decibels, a quiet urban neighborhood may average 40 decibels at night and a quiet library may seek to operate below 40 decibels If you are an architect, landscape architect or contractor, it is easy to see how much additional peace and tranquility you can bring to your client by including a vertical garden in your building plan.

Hardware Gastropub green wall
Do green walls reduce storm water runoff?2018-08-31T16:22:30+00:00

The typical green wall has very little impact upon storm water runoff. This is because the system footprint is vertical and is quite small in terms of horizontal surface area. In addition, the building overhang often blocks rain.

If storm water management is a high priority, the rain should first be captured from the roof, stored in a cistern, then filtered and used to irrigate your LiveWall vertical garden.

What are the key differences between the outdoor and indoor LiveWall systems?2018-08-31T16:21:23+00:00

When installing living walls indoors, water containment is critical:

  • The wall planters are rear-draining, and would include a rubber hose drain assembly to contain runoff water.
  • The indoor wall planters hold twice the soil volume as the standard outdoor wall planters to provide ample growing space for a wide selection of tropical plants.

In outdoor green wall applications, the designer has more options for planter size, drainage method and water delivery.

  • Large wall planters (recommended in hot climates and for holding larger perennials and grasses in cold climates) are available with a bottom drain or a rear drain option (when runoff water must be contained, such as over doorways, windows).  These are spaced 16″ on center vertically.
  • Standard wall planters have a bottom drain option, and are most commonly used with annuals, edibles, succulents, and a number of cold-winter hardy perennials.
  • Choice of spray nozzles (typically recommended for outdoors), or drip irrigation (when site is sensitive to runoff from the plants).
Indoor Green Walls
Outdoor Green Walls
What do outdoor and indoor LiveWall applications have in common?2018-08-31T16:21:15+00:00
  • They both work—very well.
  • Almost effortless.
  • Happy owners.
  • Healthy plants—systems parallel nature.
  • Same helpful design staff.
  • Same high quality, architectural grade materials.
  • Same great customer service.
Indoor Green Walls
Outdoor Green Walls
Why place living walls indoors?2018-08-31T16:20:55+00:00

Living walls contribute to improved indoor air quality.  They naturally provide oxygen, humidity, and reduced particulates and volatile organic compounds (VOCs).   When people are surrounded by plants, they are happier, healthier, as well as more creative, productive and focused.  They experience less stress and lower cortisol levels.

Learn More About These Benefits
How do I design a living wall?2018-04-23T15:22:22+00:00

Designing a living wall or vertical garden may not be something that you do everyday, so we have made it easy. We are happy to facilitate custom designs for larger scale commercial applications, and we have kits for smaller projects.

With a photo or drawing, and following a discussion of project specifics, one of our staff designers will be pleased to provide you with a price estimate.  With every order, LiveWall produces shop drawings to indicate the layout of the rails, planters and irrigation valve assembly.

For more information, please contact us at sales@livewall.com or call 877-554-4065.

Professional Design Tools
How do I select green wall plants?2018-08-14T11:40:20+00:00

Depending on the wall orientation, climate, and design intent, designers may choose from a broad variety of plant types. These include:

LiveWall has trialed hundreds of plants and has compiled our findings in living wall plant selection and pairing design guides for each of the plant types above. Copies of the plant selection and pairing guides are available to customers. To determine which plant types are best for your project, please contact us at sales@livewall.com or call 877-554-4065, or click here to request a plant selection guide.

For inspiration, click below to see a gallery of projects by type of plants.

Annuals
Perennials
Edibles
Succulents
Tropicals
How did LiveWall develop living wall plant design guides?2018-08-31T15:42:44+00:00

We have dozens of trial living walls at our facilities and nearby public sites.

In these trial walls, we test plants for both indoor and outdoor performance and hardiness.  We are constantly trialing dozens of plant selections at any given time, and require that plants be of sufficient size, hardiness, and low maintenance to thrive in our green wall system.

Browse examples of plant selection and pairing demonstration living walls.
Load More Posts
What is needed for a successful vertical garden?2018-08-31T15:43:09+00:00

A vertical garden, or living wall used to grow food such as vegetables, herbs and fruits, requires several things – proper orientation, lighting, water, drainage and nutrition. LiveWall supports these basic plants needs and yields healthy vertical gardens.

Orientation
Plants need proper orientation to grow in a healthy manner, with the roots growing toward ground and leaves toward the sun.

In nature, nearly every edible plant grows with its roots toward the center of the earth (positive geotropism) and its stems and leaves toward the sun (negative geotropism).  Plants organs also tend to grow in a straight line (known as autotropism).

When the plants are turned sideways in an unnatural orientation that results in unnatural growth patterns, as is the design of a number of vertical garden systems, they divert energy from foliar and fruit production in effort to correct their orientation. Some systems designed in this manner may also be prone to soil erosion and can be difficult to water or fertilize.

LiveWall offers natural orientation, with the plant roots growing downward and stems and leaves growing upward.

Light
Vertical gardens used for growing herbs and vegetables require abundant sunlight.

In most cases, typical indoor lighting is insufficient in intensity and inadequate in color spectrum to grow healthy edibles. Unfortunately, the small herb wall nested underneath your kitchen cabinets is not likely to perform well unless its facing a large, open window that gets several hours of direct sunlight daily, or supplemented with an intense light source of the right spectrum (such as the 15 degree Norb® bulb).

An exterior living wall planted with edibles and receiving sufficient direct sunlight can produce abundant yields, approximately 1 ounce per square foot per week of greens and herbs.  Typically, food living walls perform best outdoors on south- or west-facing walls.

Water
Vertical garden vegetables such as tomatoes require frequent watering to bear fruit.

As with any plants, supplying the optimum amount of water — not too little and definitely not too much — is critical to success. With the LiveWall system, young edible plants will likely require just one minute per day of irrigation during summer months. As they grow larger, the green wall likely will need two minutes per day of irrigation. In extreme, prolonged heat, longer run times may be needed.

Our seasonal irrigation chart recommends exact runs times based upon wall orientation and average daily temperatures. Our vertical gardens are shipped with controllers or hose timers (on smaller applications), which can be set to run on a schedule. So, you are free to go on vacation without needing to find someone to care for the plants. In volunteer-run or community gardens, this is insurance against gaps in staffing. And, for restaurants, this means one less distraction from spending time in the kitchen.

Drainage
LiveWall planters and planter inserts have drain holes that allow each row of plants to drain if needed.

Proper drainage is perhaps the most overlooked plant need in competing vertical garden designs.  Positive drainage is necessary to prevent diseases, fungal or bacterial infections, and salt build-up in living wall planters.

LiveWall systems are designed to drain for healthy roots.

Nutrition
Fertilizer is necessary to grow healthy herbs and vegetables in a living wall.

Vegetables, greens, and herbs require supplemental nutrition to produce foliage and fruit for consumption.

LiveWall makes it easy to fertilize.  On outdoor systems, a granular, controlled-release fertilizer can be applied, typical once or twice per growing season.  Alternatively, a fertigation unit feeds metered amounts of liquid plant food into the water at each irrigation event.

Easy replanting
Most herbs and vegetables have a limited lifecycle, so swapping them at the onset of each growing season should be easy.

Most edibles by their nature are annuals and require replanting each growing season.  With this in mind, we designed our vertical gardens to make the planting process easy. Removable planter inserts allow for the harvested, spent plants to be emptied and composted quickly and efficiently.

If desired, these inserts allow for young plants to be be started in a greenhouse. When the danger of frost has passed, the established vegetables or greens are simply dropped into place in the living wall.

What foods can I grow in a vertical garden?2018-08-31T15:44:17+00:00

Because of its natural orientation, roomy planters, efficient water delivery system and drainage design, LiveWall supports a broad variety of healthy edible plants.   Below are some of the foods that we have grown successfully in the LiveWall system.

Vegetables

  • Beans
  • Carrots
  • Cucumbers (miniature)
  • Eggplant (miniature)
  • Garlic
  • Onions (miniature)
  • Peppers (compact varieties)
  • Tomatoes (cascading / patio)
Woman with a box of peppers picked from a green wall.

Greens

  • Cabbage
  • Kale
  • Leaf Lettuce
  • Mustard Greens
  • Romaine Lettuce
  • Spinach
  • Swiss Chard
Vertical garden for fresh, vitamin rich greens such as kale and chard.

Fruits

  • Muskmelon (midget)
  • Strawberries
Ever-bearing strawberries make a delicious living wall fruit.

Herbs for Sunny Walls

(typically South or West-facing)

  • Basil
  • Beebalm (Bergamot)
  • Borage
  • Chervil
  • Chives
  • Cilantro
  • Cumin
  • Dill
  • Lemon Balm
  • Lemon Grass
  • Marjoram
  • Mint
  • Nasturtium
  • Oregano
  • Parsley
  • Rosemary
  • Sage
  • Savory
  • Stevia
  • Thyme
  • Wheat Grass
Sunny walls can grow the widest selection of herbs, such as rosemary.

Medicinal and Aroma-therapeutic

  • Aloe Vera
  • Borage
  • Calendula
  • Catmint
  • Chamomile
  • Echinacea
  • Goldenseal
  • Hyssop
  • Lavender
  • Patchouli
  • Scented Geranium
  • Sweet Woodruff
  • Yarrow
Lavender is one of many fragrant plants that can grow in a living wall.
Can existing buildings be retrofitted with green walls?2018-08-31T16:20:11+00:00

In most cases the answer is, yes. In some cases it may take a little redesign for the additional weight of the LiveWall modules, but the principal force of the LiveWall system is downward, so most of the time retrofitting is relatively easy. A qualified engineer should always be consulted for retrofit applications.

Can the LiveWall components be cut to fit?2018-08-31T16:19:54+00:00

LiveWall is a soil-based living wall system that utilizes molded-planters, and the structures must be designed in the increments required to accommodate full planters:

Horizontal spacing:  16″ on center

Vertical Spacing: Large Planters (Indoors or Outdoors): 16″ on center, Standard Planters (Outdoors): 12″ on center

Typically, the only components that you would need to cut to fit are the furring strips and irrigation lines.  RainRail® irrigation conduit slot rails are manufactured in a variety of lengths divisible by 16 inches. Our design staff chooses appropriate RainRail lengths to eliminate field cutting. In some cases, field conditions may not match the site plans provided to LiveWall and custom cutting may be required. In those cases, the rails must be cut to 16 inch increments, and the cut end will have to be cleaned of all burs and debris to prevent irrigation nozzles clogs.

How much does the LiveWall system weigh?2018-08-31T16:19:37+00:00

Using the Standard sized planters, LiveWall structures weigh from 10 to 15 pounds per square foot when saturated and vegetated with typical upright growing plants.  Long trailing vines may increase this weight.

Using the Large sized planters, LiveWall structures weigh from 18 to 22 pounds per square foot when saturated and vegetated with typical upright growing plants.  Long trailing vines or very large, succulent foliage may increase this weight.

What moisture or mold concerns are there in designing living walls?2018-08-31T16:19:28+00:00

An important component to any vegetated wall design is to recognize that moisture from the inside of the building can come outward through the walls and needs venting to escape. For this reason, the building should not be wrapped in rubber or plastic, but with a breathable weather resistant barrier such as Tyvek.

Similarly, the living wall system itself must allow that air to escape from behind the planter array.  LiveWall includes furring strips which allow a minimum of 1.5″ gap between the building wall and the planters.  This is substantial room for air flow, evaporation and escape of condensation.

The design of and selection of materials for moisture and mold-proofing should be performed by the project architect, engineer, or building envelope specialist.  LiveWall is happy to relay to you the common practices that we have observed.  Need help?  Please contact us at sales@livewall.com or call 877-554-4065.

Are green walls fire resistant?2018-08-31T16:24:19+00:00

LiveWall is a building facade system and as such is not designed to be fire resistant.  The planter module material is rated at 780°F flash point and burns at 450°F.

The soil is relatively nonflammable, and the plants are variable.  If fleshy, succulent plants are used, they will actually be a fire deterrent, and if grasses are used and allowed to dry out, they are potentially flammable.

Which fasteners are recommended to anchor the LiveWall system to the building wall?2018-08-31T16:19:19+00:00

The LiveWall system includes furring tracks which provide flexibility in design over a number of different applications. The building wall design and means of fastening LiveWall to the wall system are the responsibility of the local architect and/or structural engineer and installation contractor and must comply with local codes.  The installation contractor will be responsible to select appropriate anchors.

We contacted Fastenal and HILTI for their recommendations for various types of wall structures, and compiled them below (based on 18 pounds per square foot).  Contact your preferred anchor manufacturer to confirm suitability for your application.  Please note that adhesives should not be used.

Wall Material Fastener Type Size Pilot Hole MFG/ Vendor Part
Brick Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
CMU Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
Mortar Joints Not Recommended
Poured Walls Torx Hex Washer Head Screw Anchor 1/4″ x 1-3/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-3/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-3/4″ 1/4″ Fastenal 0131211 1/4″ x 1-3/4″ Hex Washer, Hex Drive, St Steel
Steel Studs Ballistic Point, Single Fastener 0.157-1″ N/A HILTI X-U 27 P8 TH

Metal “Tophat” & 8mm Plastic

Aluminum Studs Ballistic Point, Single Fastener 0.157-1″ N/A HILTI X-U 27 P8 TH

Metal “Tophat” & 8mm Plastic

Wooden Studs Torx Hex Washer Head Screw Anchor 1/4″ x 1-1/4″ 1/4″ HILTI KWIK-CON II+1/4″ x 1-1/4″ THWH St Steel
ITW Red Head Tapcon Screw Anchor 1/4″ x 1-1/4″ 1/4″ Fastenal 0131211 1/4″ x 1-1/4″ Hex Washer, Hex Drive, St Steel
EIFS Varies, fasten through Exterior insulation and finish system (EIFS) to structure below.
How high can a LiveWall be installed?2018-08-31T16:20:21+00:00

Functionally, LiveWall can be placed as high as your building infrastructure, plumbing, and ability to access it for maintenance will allow. It is up to the discretion of the Owner/Architect/Engineer as to the appropriateness of the system at any given height, with all health, safety and environmental factors to be considered.

Keep in mind that the taller the building, the more substantial the wind forces, particularly upward lifting wind forces. LiveWall specifies the use of its proprietary WindClip™ on installations above two stories.

For more information, consult our engineering section and please contact us at sales@livewall.com or call 877-554-4065.

Engineering Considerations
Is supplemental lighting required for indoor living walls?2018-08-31T16:22:14+00:00

Lighting is critical to the success of your living wall. In nearly every indoor application, supplemental lighting will be necessary to ensure the proper intensity and spectrum for plant growth. Designers should specify fixtures, bulbs and placement to ensure that the living wall is evenly lit and receives the full spectrum of lighting required to grow healthy plants.

Fully vegetated green wall
What light intensity is required for indoor green walls?2018-08-31T16:22:00+00:00

Light intensity is a measure of light energy hitting the plant surface and is also very important to plant health. For traditional interior lighting applications, light intensity is discussed in terms of foot-candles of light energy. While foot-candles is not the preferred measure of light intensity by horticultural scientists (who prefer a measurement in terms of “photo active radiation”), we have found that foot-candles will suffice if a proven light source, such as LiveWall’s Norb® bulb, or one of the other recommended methods, is chosen. And, for most tropical foliage plantings 200-400 foot-candles of light energy hitting the foliage, is sufficient.

LiveWall, LLC has developed a plant selection and pairing guide for indoor plants based upon their lighting and water needs, and growth habit. This LiveWall design guide should be consulted for the correct light intensity for the type of plants that one intends to use. We have categorized the plants into lighting needs as follows:

Bright Light

Indoor location with direct light from a south or west exposure where the plants receive 2 or more hours of direct sun, but preferably not during the hottest part of the day.

Artificial Bright Light is approximately equal to a four tube florescent fixture in close proximity to the planting, in the range of 400 to 600+ foot candles, for 12 to 15 hours per day.

Medium Light

Indoor location with direct light for a couple of hours in the morning or afternoon (from east or west facing windows), or from a south facing window provided the location is several feet interior of south facing windows.

Artificial Medium Light is approximately equal to a two tube florescent fixture, 2 or 3 feet from the foliage, in the range of 100 to 400 foot candles for 12 to 15 hours per day.

Low Light

Low Light pertains to an indoor location that is not close to windows or supplemental lighting—typically a north or east exposure.

Artificial Low Light is enough to read a newspaper, in the range of 25 to 100 foot candles for 12 to 15 hours per day.

For a copy of the LiveWall Indoor Plant Design Guide, contact us at sales@livewall.com or call 877-554-4065.

What type of lighting fixtures and bulbs are best for vertical gardens?2018-08-31T16:19:07+00:00

Light fixtures should be adjustable, for direction, and are typically located in front of the living wall and attached to or suspended from the ceiling. Occasionally, they are located at the bottom or sides of the LiveWall structure, to create proximity to the plants, and thereby provide sufficient light intensity across the entire wall surface. Often times, track lighting is used as it is contemporary, comes with many fixture options, and is relatively inexpensive.

In respect to the light source (bulb), the key considerations are proper light spectrum and light intensity. Plants tend to respond to blue and red wavelengths and in proportion that is not available from incandescent or typical office-type LED lights.  There are, of course, LED grow lights composed of red and blue diodes—but they tend to cast a purple light which looks odd, unnatural and unattractive.

For this reason, LiveWall LLC developed the Norb® (Nutri-Orb) bulb, a specialized White-Light LED grow bulb that provides the right spectrum for growing plants. With Norb® bulbs, the plants can be healthy and “look right under white.”

Norb is a PAR38 LED light bulb that grows healthy plants.
Norb LED Grow Bulbs

Track lighting offers flexibility

Indoor green wall with artificial LED lighting.

This living wall installation is lit by 12 total Norb® bulbs directed at the 8’ x 8’ and 11’ x 11’ walls. These bulbs are angled from track lighting attached to the 12 foot ceiling. This configuration provides plenty of light and serves as an example of about how many lights would be needed for such an installation.

Where on the ceiling should lighting be affixed?

While each light source may have a different beam angle and intensity, it is important to keep in mind not only the amount of distance that the planters sit from the wall, but that the plants may extend from the planters, particularly if billowing plants are selected.

As a rule of thumb, when using the LiveWall Norb® brand bulbs, we recommend setting the track lighting fixture back 7′ from the wall it will light.  This should allow ample room for the vegetation and good light distribution.

The following lights also support plant growth

Combination High Pressure Sodium / Metal Halide lights are usually quite powerful and best suited for larger walls.  They are excellent for growing plants as they have a light spectrum that is relatively similar to the sun.

Metal Halide lights have a good spectrum for growing foliage. They contain a lot of blue light in their spectrum, but appear white in color. They usually require a ballasted fixture; however, there are a few, typically 25 watt, internally-ballasted bulbs in the marketplace—which are suitable to use in conventional track-lighting fixtures.

Florescent lights have a good plant growing spectrum, but they may not provide sufficient intensity if mounted from a distance, so ensure close placement to the living wall. These are typically only acceptable for small applications, and it may be difficult to find attractive fixtures to pair with them.

The following lights are not recommended for growing plants

Halogen lights do not have the proper spectral components for growing plants.

High Pressure Sodium lights lack blue light in their spectrum needed to support indoor foliage plants and the light they emit tends to look yellow. Their spectrum supports flowering, and therefore they may be a good choice for indoor plants when combined with a Metal Halide light.

Ordinary LED lights, i.e. LED lights that are commonly used in office or exterior lighting—typically with color temperatures of 3000K-4500K—ARE NOT SUITABLE FOR PLANT GROWTH.  If LED lighting is desired, the LiveWall® Norb® (Nutri-Orb) LED bulb should be specified.

How long should indoor plants be artificially lit?2018-08-31T16:58:13+00:00

Plants need a dark period to rest and prevent metabolic fatigue. Therefore, grow lights should only be run 12-15 hours maximum per day—typically from 7 AM to 8 or 9 PM (to mimic light conditions in tropical regions). The rest of the time, they should be in darkness, or near darkness.

If security lighting is required in the area of the LiveWall, it should be of very low intensity and not directed toward the plants.

Do not run Norb® bulbs (or any bulb labelled as supporting plant growth) on the green wall for more than 15 hours per day.

We recommend running the lighting for the living walls on a dedicated outlet programmed to run for 14 hours per day.

Do living walls require irrigation systems?2018-08-31T16:18:15+00:00

In most cases, your LiveWall system will require an automatic irrigation system to keep up with the plants water needs.

The amount of irrigation applied to outdoor will depend on the plants selected, the local climate, specific weather patterns and the wall orientation (south, north, east, west, windward, leeward, high, low, etc.).   Outdoor living walls typically require daily watering for at least a few months of the year.  The LiveWall System enables you to install an automated watering system with precise metering to nurture the vertical garden plants you choose.

We only recommend hand-watered structures for small, indoor, easily-accessible installations.  Contact us to review the irrigation needs of your living wall project.

Contact Us
How often do green walls need to be watered?2018-08-31T16:12:14+00:00

The amount of water that green wall plants need can vary greatly.  For this reason, we have developed specific irrigation recommendations based upon the plant type, wall orientation/ light intensity, maturity, and average daily temperatures.  How windy and exposed the site is may have an impact, but it is good to start with the recommendations outlined in the seasonal irrigation chart below and adjust accordingly.

Irrigation Chart:  Outdoor LiveWall with Standard Size Planters and Spray Irrigation

LiveWall recommendations for irrigation run times, outdoor walls with standard size planters and spray irrigation.
What are the water main line requirements for LiveWall?2018-08-31T16:17:49+00:00

The LiveWall System requires an irrigation feed that is capable of providing sufficient water volume and pressure for each irrigation zone.  The backflow preventer should be hooked up to a feed line that is at least 25PSI, not to exceed 85 PSI.  Pressures over 85 PSI may damage fittings and lead to leaks.

Each valve requires 8-10 gpm per valve (zone), regulated to 15psi pressure, via pressure regulators that are placed upstream of each valve.  In some cases, a booster pump may be required to ensure that the upper valves receive sufficient pressure and flow to water the planter array evenly.

LiveWall quotes mainline irrigation components for each project, and this includes backflow prevention, irrigation controller, and a micron filter to keep any waterborne debris from plugging up the irrigation nozzles.  Installation contractors must source pipe and fittings to connect mainline to the irrigation valves.

How is the watered delivered to the plants with LiveWall?2018-08-31T16:17:30+00:00

LiveWall is watered either with spray nozzles or drip emitter assemblies attached to the RainRail irrigation conduits.  These are horizontal slot rails that are hollowed out so that water may pass through them to the irrigation nozzles.

Watering Components
What are the differences between rear and side irrigation feed options?2018-08-31T16:18:36+00:00

Side Irrigation Feed

Advantages

  • Less Expensive

  • Easier to install

  • Thinner profile

Drawbacks

  • Requires 8″ or 16″ wide facing treatment at one or more ends of the installation.

Recommendations

Consider making a hinged facing material over irrigation feed lines for ease of future access for inspection and maintenance.

Facing material not yet installed

Rear Irrigation Feed

Advantages

  • Wall-to-wall coverage

  • May eliminate need for a side treatment (facing material)

Drawbacks

  • More expensive

  • Takes more time to install

  • Deeper profile

Recommendations

May require side treatment depending on site conditions and desired aesthetic. On new construction, consider recessed walls to reduce the living wall profile. For the plants to be flush with the adjacent wall surface, recess green wall area by 11 inches with Standard-sized planters and 13 inches for Large-sized planters. To conceal the thicker furring strips only, recess green wall area 5 inches.

Is hard water a problem for living walls?2018-08-31T16:16:50+00:00

Descaling Catridges ensure water flow

Properly treated hard water poses no health risks and actually provides beneficial nutrients to LiveWall plants. However, buildup of calcium or iron scaling from untreated hard water can potentially impair the flow of water through the irrigation nozzles. Happily, the cost of treating hard water is not an expensive add-on to a LiveWall System installation.

In cases of hard water, use phosphate descaling system to prevent irrigation system blockage or failure.  This can be purchased from LiveWall.  Descaling cartridges should be replaced annually and can be reordered from LiveWall.

Very Large Projects (over 2000 square feet) may require additional treatment

On larger walls, an alternative chemical treatment system may be preferred.  In these cases, LiveWall recommends CH2O, Inc.

For a free water test to determine the type of hardness, how much is in the water, and the cost of treating 10,000 gallons of your water, send them a sample.

CH2O
4141 Boston Harbor Rd. NE
Olympia WA, 98506
Attn. Bruce Kooi
Phone: 360-259-6493

How does the height of the living wall system affect irrigation?2018-08-31T16:16:41+00:00

On outdoor walls, the higher up you go, the windier the conditions tend to be, and you will get more evaporative drying.  To compensate for this additional loss, adjust to run the irrigation longer on the upper zones.  You can expect to lose about ½ PSI of pressure per each foot of elevation. This corresponds to about ½ PSI for each tier of the LiveWall system and on very tall walls, booster pumps may be needed to sustain pressure. Plumbing should be sized and engineered accordingly.

When do the irrigation lines need to be blown out on outdoor green walls?2018-08-31T16:16:31+00:00

In northern climates, deactivate the system in fall by blowing out the irrigation lines with compressed air, not to exceed 20 psi, and turning the irrigation controller off.  Empty lines and valves are required to avoid freeze thaw damage, so this needs to be done before the first hard freeze of the system.

After blowing the system out, the rain may effectively water the top few rows, and keep it moist until freezing occurs. But, the lower levels can still dry out and should be monitored and kept moist unless frozen.

It is not uncommon to need to irrigate a few times during wintertime warm ups. If needed, you can water with a hose and hand-held sprayer or use the built-in system, then blow it out afterward until the danger of freezing has passed.

Important

If you have perennial plants, throughout winter, the soil should be checked during periods of thawing to ensure proper moisture. The soil should be moist, not wet or boggy, or dry, whenever the soil is not frozen solid.

Do living walls need to be watered during winter?2018-08-31T16:16:21+00:00

Warm Climate

In climates with warm winter weather, irrigation will need to continue throughout the winter.  Less water is typically required during the coldest months.  Follow the LiveWall irrigation chart to adjust the run time and frequency as the temperatures  change.

In the event of an occasional freeze, it is important to blow out the irrigation lines an prevent cracks and leaks, and reactivate the system as the weather warms and plants dry out.

Important

Your outdoor living wall’s irrigation system may need to be blown out and reactivated multiple times during the winter months to sustain perennials.

Cold Climate

To sustain perennial plants through the winter, the soil must not excessively dry out. The plants in the living wall will not receive sufficient moisture from rainfall due to its vertical nature, and because the planters are exposed, the plants will enter dormancy earlier than the plants in the ground will. Therefore, you will likely need to water your perennial plants before the danger of freezing has passed and typically much sooner than you begin irrigating your at grade landscape.

  • If the application is planted with perennial plants and it is large, or commercial scale, activate the system as needed – but do so only on warm days where water can flow and drain freely, and only enough to remoisten dry soil.  The irrigation system will need to be blown out after each use until the danger of freezing has passed.
  • If the application is small scale, then wintertime watering can be implemented as indicated above, or simply by using a hand held hose or watering can as the weather necessitates.
How is LiveWall typically installed?2018-08-31T16:15:58+00:00

LiveWall is usually installed by professional contractors specializing in landscape, irrigation, plumbing, siding or general construction.

Need a referral to a local contractor?

Contact Us
Is the LiveWall system simple to install?2018-08-31T16:23:27+00:00

Yes.  Among the commercial-grade planted living wall products, LiveWall is among the simplest to install.

LiveWall installation requires little guesswork, and can be completed with common tools of typical tradesmen.  The irrigation system is integrated into the planter array, installation steps are spelled out in our installation guide and video, and custom shop drawings are produced with each order.

Fast easy installation is the norm, and this equates to economical installation.

How long does it take to install the LiveWall System?2018-08-31T16:15:32+00:00

Our time studies indicate that it takes about 3/10 (.3) to 1/2 (.5) man-hour of labor per square foot.  It will be somewhat greater for smaller applications and less for larger applications.

Can the outdoor green wall system be installed in the winter?2018-08-31T16:15:22+00:00

The infrastructure of the LiveWall system can be installed in every season, with some caveats:

  • The irrigation system should not be activated at temperatures at or below freezing. Thus, the irrigation system will need to wait to be tested until temperature climbs above freezing.
  • Nozzles should not be installed until the irrigation system has been tested and run to flush out any debris introduced during the installation.
  • Generally, plants should be not be installed during winter.  We recommend that they are held at the nursery until the spring.

To minimize installation time, please familiarize yourself with the installation instructional video on this website.

LiveWall's structure can be installed in the winter.
What type of soil should I use in a green wall?2018-08-31T15:42:28+00:00

The makeup of the growing medium depends upon the plants you choose to grow, as the media should have last to match the life expectancy of the green wall plant.

Annual plants require a good potting soil mix.
For Annuals, Vegetables, Small Fruits, and Herbs

Plants are expected to be used for one full year need a good quality peat-based or coconut fiber-based potting soil. These are available at local garden centers.

Perennials need a good potting soil with perlite, pumice or pine bark.
For Perennials, Vines and Tropicals

Plants that are expected to last for 3 to 5 years before dividing, use a good quality potting soil, with perlite or pumice and/or composted pine bark. Such potting soils will tend to decompose less.

Succulents may last decades without repotting, so need a highly inorganic growing media.
For Succulent Plants

Plants that can last decades without repotting, succulents need a good quality mix, typical of one marketed for rock gardening. The unique quality of such mixes is that they have a high mineral content (e.g. perlite, pumice, or expanded shale) and less organic matter, and therefore do not decompose over time.

How much soil is needed for each LiveWall planter?2018-08-31T15:41:56+00:00

LiveWall Standard size planters are available in two widths. The soil volume of each planter is:
half – 0.109 cu. ft.
full – 0.217 cu. ft.

LiveWall Standard Size Planter Inserts
Standard Planters

LiveWall Large size planters are supplied in a single width. The soil volume of each planter insert is 0.4 cubic feet.

LiveWall Large Size Planter in Sage Color
Large Planters

Please Note:

Depending on the soil type and starter plant size, additional soil may need to be ordered to account for settling.

How much maintenance will my living wall require?2018-08-31T16:15:09+00:00

Anything living requires maintenance, including LiveWall.  Due to the design of the LiveWall system, maintenance requirements will be simple and will vary with the type of plants that have been chosen.  LiveWall provides complete maintenance guides with suggestions for each category of plant.

Annual plants may not require much care at all. However, at the beginning of each year they will need to be replaced with new fully-grown annuals. Simply remove the living wall planter inserts from last year, and drop in the new preplanted inserts for the current year.  For more information, see our planting guide.

If perennial plants are used, they will be subject to the typical maintenance of ground level perennial plantings: removal of spent flower stalks, fertilization, and trimming stems and foliage if they become overgrown. If the plants are deciduous (i.e., they drop their leaves in fall), they will need to be pruned back to the soil level each spring before they break dormancy.  They will also typically require periodic wintertime watering during dry periods above freezing temperature.

Maintenance is Simple, yet CRITICAL

The key to healthy living walls is short, frequent visits.   We recommend twice monthly inspections, and provide a monthly email with seasonally relevant instructions to all owners and contractors caring for a LiveWall brand system.  To receive these updates, submit your email below.

Indoor Maintenance Guide
Outdoor Maintenance Guide
Can the LiveWall structure be climbed on for maintenance?2018-08-31T16:14:59+00:00

No.  The LiveWall System is not designed to be climbed on for maintenance or any other reason.  It is designed to hold plants, not a human body.  Climbing on the system could lead to product failure and injury.  Be sure to keep children off the vertical garden tiers, as well.

What concerns are there with salt and chemical deicers?2018-08-31T16:14:15+00:00

Vertical garden plants will be damaged or killed by deicing chemicals.  If the living wall is near walkway areas that are shoveled, use care to throw the snow in another direction as it may contain deicing agents.

How do I fertilize the living wall?2018-08-31T16:14:06+00:00

The method of fertilization depends upon the water delivery method and whether a fertilizer injector was installed on the mainline.

Fertilizer Options Chart

All applications of fertilizer are the sole responsibility of the applicator.

For more fertility management information, please see the Maintenance section of our website.

Automatic Fertilization

LiveWall Fertilizer Injector
Automatic Fertilizer Instructions

LiveWall systems may be purchased with a fertilizer injector that is tied into the irrigation system. The fertigation system injects a low dose of fertilizer each time your living wall is irrigated.

Manual Slow Release Granular Fertilizer

Outdoor walls and hand-watered indoor walls may be fertilized once annually using a granular slow release fertilizer. We recommend Scotts Osmocote®, which releases nutrition slowly for the entire growing season. This product is available from most garden centers. Typically, one teaspoon of fertilizer shaken evenly across the soil surface of each Standard sized wall planter during the spring is sufficient to feed plants through the growing season. Half-sized wall planters may require half as much fertilizer. This will vary with formulation and in all cases, the labeled directions on the package should be followed.

Do not use granular fertilizer for indoor walls with automatic irrigation. The granules require water to run over the surface to activate, and LiveWall indoor systems include drip stakes that inject water directly into the soil.

Manual Liquid Fertilizer

Every 6 to 12 months, indoor or outdoor living walls which do not have automatic fertigation may be fed with a higher concentration of liquid feed. Fertilizer may be applied manually according to the label directions using a watering can or a hose.

How often do green wall plants require replacement?2018-08-31T15:45:08+00:00

The need to replant during spring with vary with the severity of winter, diligence to proper care, and plant material.

Annuals, Vegetables, & Herbs

These plants require replacement at the beginning of every growing season.  There are two ways of doing this:

  1. Drop off your empty planter inserts at a local nursery to have them grow the plants in their greenhouses.  If they begin 6-8 weeks prior to your last frost date, you can begin harvesting right away once you plant them.
  2. Plant the liners yourself using 2 or 3 inch starter plants from your local garden center.

In any event, it is important to thoroughly wash out the planter inserts and start with fresh potting soil.

Soil Type

Organically rich potting soil, available at every garden center.

Perennials & Tropicals

By definition, perennials, including tropical perennials, have the potential to live forever.  But, when grown in a container such as the living wall planter insert, they will eventually become root-bound, and at some point will need to be replaced, or divided and replanted.  How long they will go with out the need for division is a factor of the particular plant’s habit, its root characteristics, and climate.  Many perennials are expected to last up to three years before becoming root-bound in the LiveWall system.*

How do you know when it is time to replant and divide a perennial?  You know it is time when the plant has become so root-bound that the growth and flowering become stunted.  When this occurs, the plants can be removed, divided and replanted.  Or, they can be composted and replaced with new plants.  Replacements should be done during spring or early summer so that the plants become well established prior to winter.

Soil Type

Potting soil containing pine bark, as it decomposes very slowly.

Sedums & Succulents

Follow LiveWall's succulent plant design guide recommendations for selection and pairing.

Because most Sedums and succulents have very fine root systems, they have the potential to survive for many years without becoming root bound.  Some could be sustained for over a decade depending on the species and care.  As such, they need to be potted in a soil that will hold its structure for many years.

Soil Type

“Alpine” soil-type that is gritty and highly inorganic (similar to blends used for green roofs).

*Consider a vinyl cover to reduce winter perennial plant losses.

Managing moisture of perennial plants during winter can be challenging.  LiveWall supplies grommeted, vinyl winter covers to aid in the overwintering of “perennial” plants in cold winter climates.

Why is this needed?

In cold winters, especially those with sunny windy conditions, the plants can literally be “freeze-dried”. By covering with a vinyl winter cover, this effect is greatly lessoned. Winter covers act to moderate temperature highs and lows, block the wind, and hold in moisture.

Winter Cover Use Instructions
What do they look like?

They are printed with an attractive mid-green, translucent Boston ivy graphic.

How are they used?
  1. Winter covers are applied just before the soil freezes, appx. Dec. 1 in Michigan for example, and only after THROROUGHLY WATERING THE SOIL (the day before covering). The plants “should not” be pruned before they are applied. This helps hold in moisture.
  2. Winter covers are typically removed during mid to late March in Michigan for example.  Upon removal, plants are immediately and thoroughly watered (and thereafter watered according to need—see LiveWall watering chart), but not pruned until after danger of late frost, as they will have tender new shoots among last years’ foliage and stems.
How are they attached?
  1. They are tightly applied with zip ties, bungee straps or ¼ inch nylon rope. They can be anchored into the support wall, the LiveWall frame, or the planter boxes. Some installers drill small holes in the top or bottom lip of the planters, which is relatively unnoticeable. Winter covers should be tightly attached to structure, with every grommet. If the wall is large, it will require multiple covers, and the grommets in the middle should be attached to the planters or structure, rather than just connected together. All grommets should be tightly attached to “structure”.
  2. If the site is very windy, consider adding some strapping or roping material across the face of the cover, to prevent billowing or flapping in strong winds.
What sort of results can I expect?

All walls, exposures and weather conditions are unique, so there are no guarantees. However, where winter covers have been properly used they have greatly improved overwintering success—with some walls in Michigan experiencing nearly 100 % survival.

What opportunities are there to share my living wall?2018-08-31T15:43:35+00:00

Please post your projects on the LiveWall.com project showcase!

And, please email us your high resolution photographs of your LiveWall planted walls.  We are always looking for new installations to feature on this site and in future editions of our idea guide and system catalog.
